Hypercom IEN 1000 - Type RIRO

CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-25
Type RIRO
The Hypercom Type RIRO cable is used to provide a UTP Ring In and Ring Out port for the

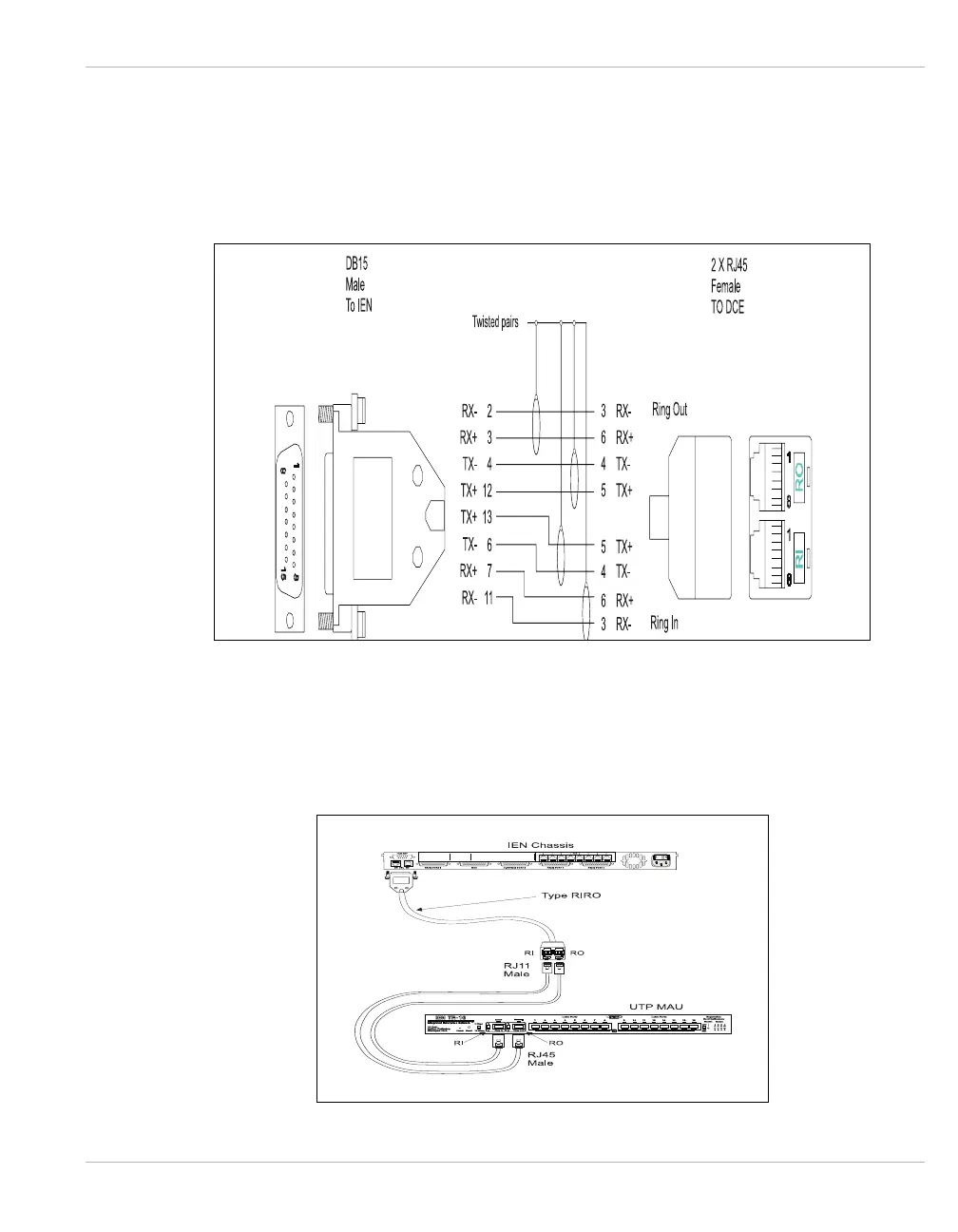

MAU08 in an IEN 1000 chassis. Figure 4-26 illustrates the Hypercom Type RIRO cable pin
connections and pin descriptions and identifies the cable connectors.
Figure 4-26 Type RIRO Cable
The Type RIRO male DB15 connector is attached to an IEN 1000 HUB expansion port. The
Type RIRO female RJ45 connectors are plugged into Ring In and Ring Out of a Token Ring.
Figure 4-27 illustrates the use of the Type RIRO cable.
Figure 4-27 Type RIRO Cable Connection
