CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-9
Type ALG-2W
The Hypercom Type ALG-2W cable (#810132-001) is a male DB25 to four female RJ11
cable. The cable is used to connect a DLA14 port processor to two-wire analog handsets or
PBX termination using female RJ11 modular connectors. The length of the cable is 3’.

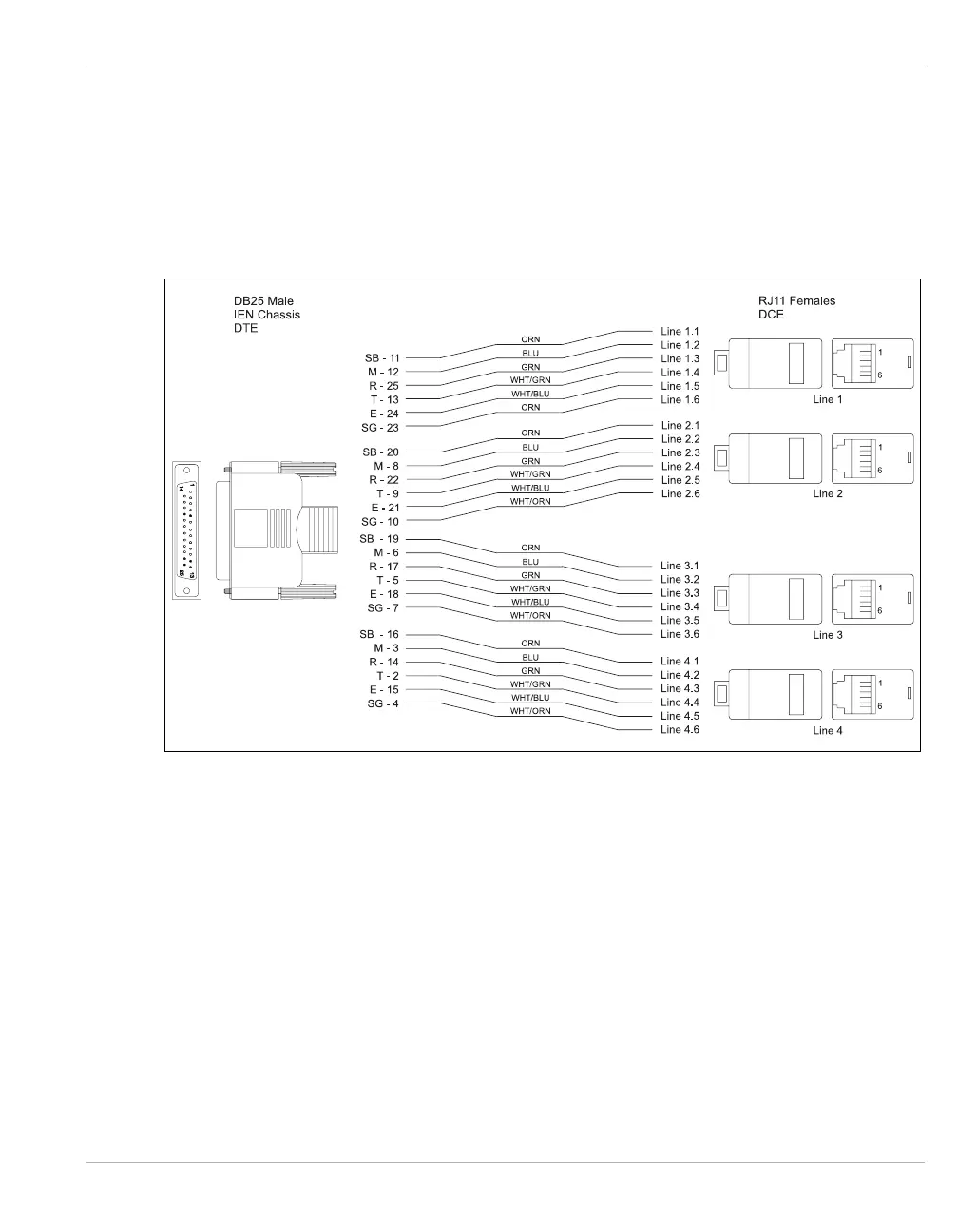

Figure 4-3 illustrates the pinout for the Type ALG-2W cable.
Figure 4-3 Type ALG-2W Cable Pinout
The Type ALG-2W male DB25 connector is attached to the appropriate line port on the
IEN 2000, IEN 3000, IEN 4000 or IEN 5000 chassis that corresponds to the slot containing
the DLA14 port processor. The Type ALG-2W female RJ11 connectors are attached to male
RJ11s.
