The Type A cable is used to connect an IEN RS232C DTE port to an RS232C DCE port. The
cable is also used with the Hypercom Type D cross cable to enable the IEN device to appear
as a DCE device. Figure 4-2 illustrates the IEN device setup as a DCE and DTE device.

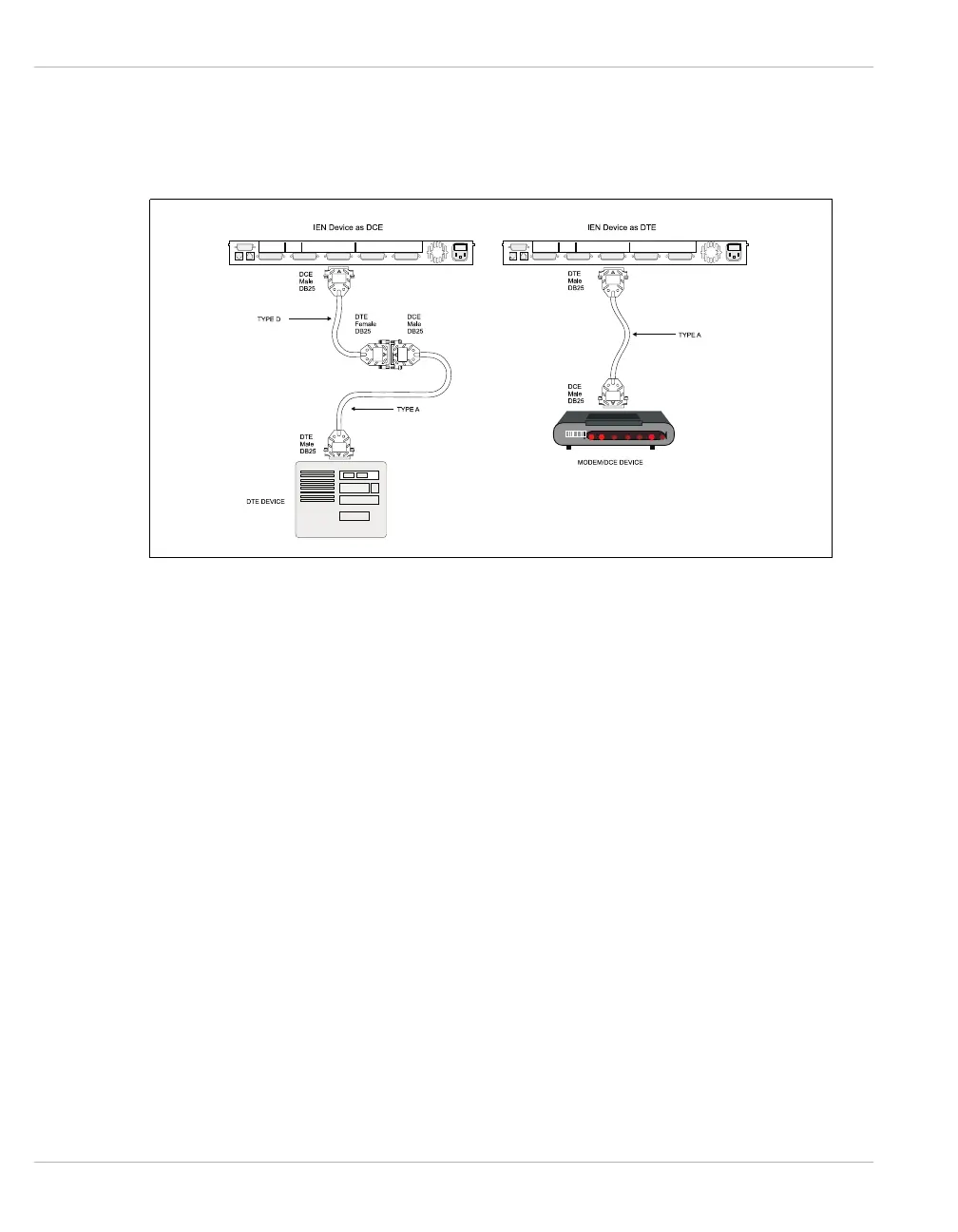

Figure 4-2 IEN Device as DCE and DTE
