Type T(63)
The Hypercom Type T(63) cable (#810123-001) is a male RJ11 to two female RJ11 cable.
The cable provides two female RJ11 connectors that come off of a CID63 port processor.
This cable can be connected to other Hypercom RJ11 type cables. The cable splits out the
two line ports of a CID63 port processor. The length of the cable is 3’. Figure 4-32
illustrates the pinout for the Type T(63) cable.
Note: The second connector only supports a two-wire connection.

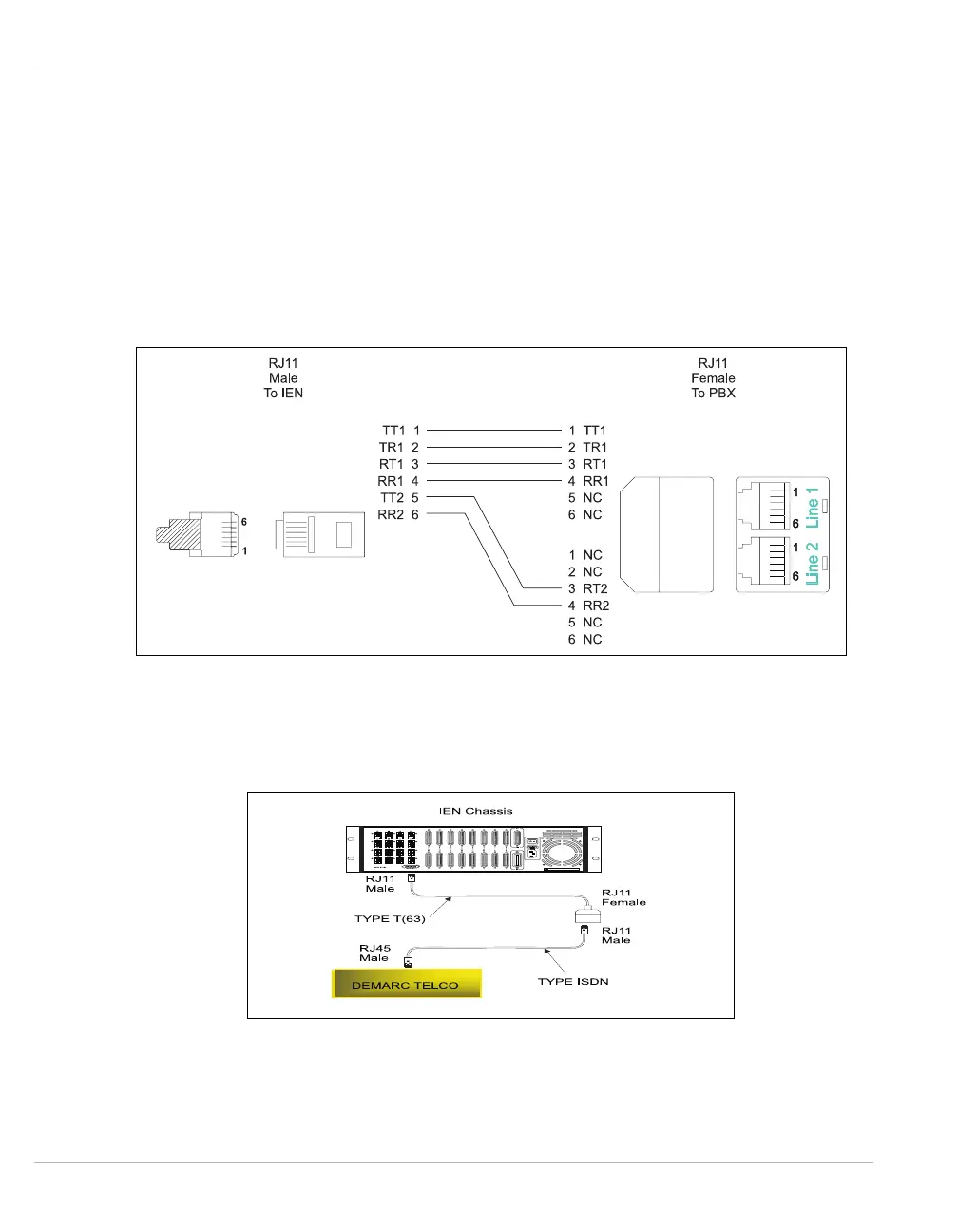

Figure 4-40 Type T(63) Cable Pinout
Figure 4-41 illustrates the cable connection for the Type T(63) cable.
Figure 4-41 Type T(63) Cable Connection
