Type T1-45-M
The Hypercom Type T1-45-M cable (#810074-001) is a male RJ11 to male RJ45 cable.
The cable is used to connect a DSX11 or DTC11-LHO port processors to an RJ45 Telco
termination. The length of the cable is 15’. Figure 4-34 illustrates the pinout for the Type
T1-45-M cable.

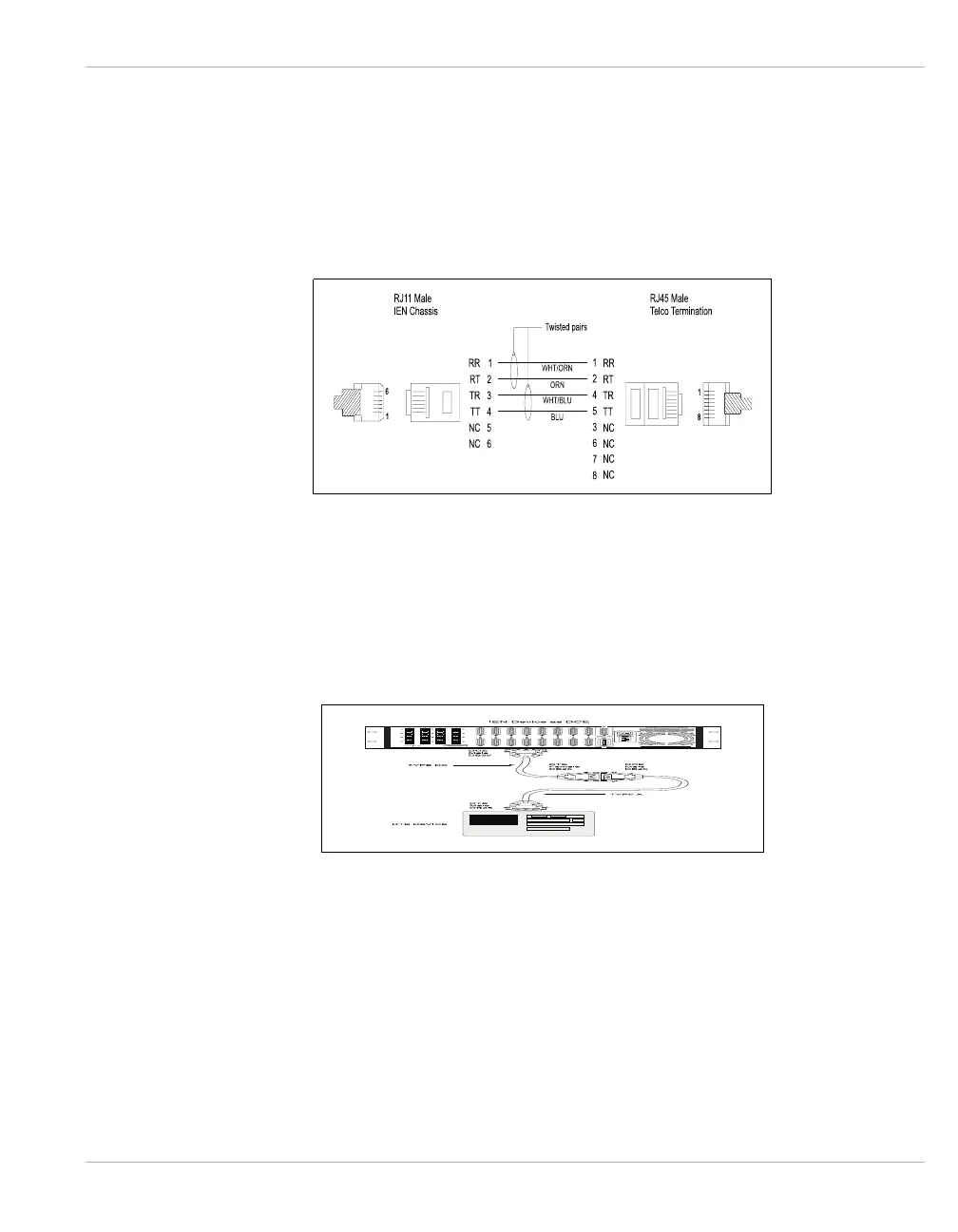

Figure 4-34 Type T1-45-M Cable Pinouts
The Type T1-45-M male RJ11 connector is attached to the appropriate line port on the
IEN 2000, IEN 3000, IEN 4000 or IEN 5000 chassis that corresponds to the slot containing
the DSX11 or DTC11-LHO port processors. The Type T1-45-M male RJ45 connector is
attached to the Telco RJ45 termination.
Figure 4-35 Type T1-45-M Cable
