Hypercom IEN 1000 - Type 2 VE

CHAPTER 4
4-48 IEN HARDWARE REFERENCE 940043-002
Type 2VE
The Hypercom Type 2VE cable (#810083-001) is a male DB25 to two female DB25 cable.
The cable is used only with the CID61-Dual port processor to connect up to two V.35 DCE
ports. The length of the cable is 3’. Figure 4-64 illustrates the pinout for the Type 2VE
cable.

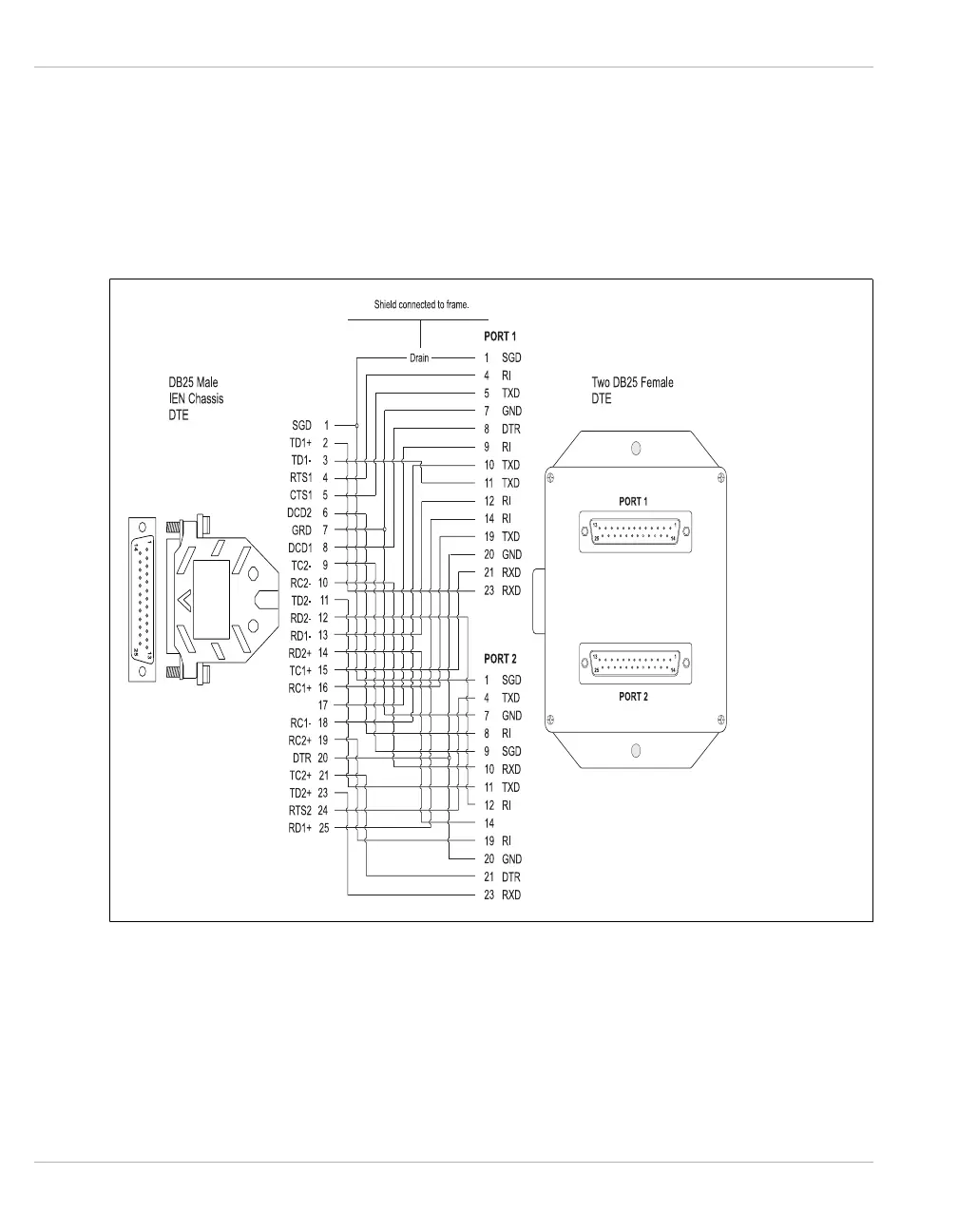

Figure 4-64 Type 2VE Cable Pinouts
