CHAPTER 4
4-14 IEN HARDWARE REFERENCE 940043-002
Type B
The Hypercom Type B cable (#810010-001) is a male to male bus extension cable. This
cable is a modified IEEE488 cable used to connect two or three IEN chassis at the bus
extension port. The cable only extends the standard bus. Pins 1, 2, 11, and 23 are
removed. The length of the cable is 3.5’. Figure 4-9 illustrates the pinout for the Type B
cable.

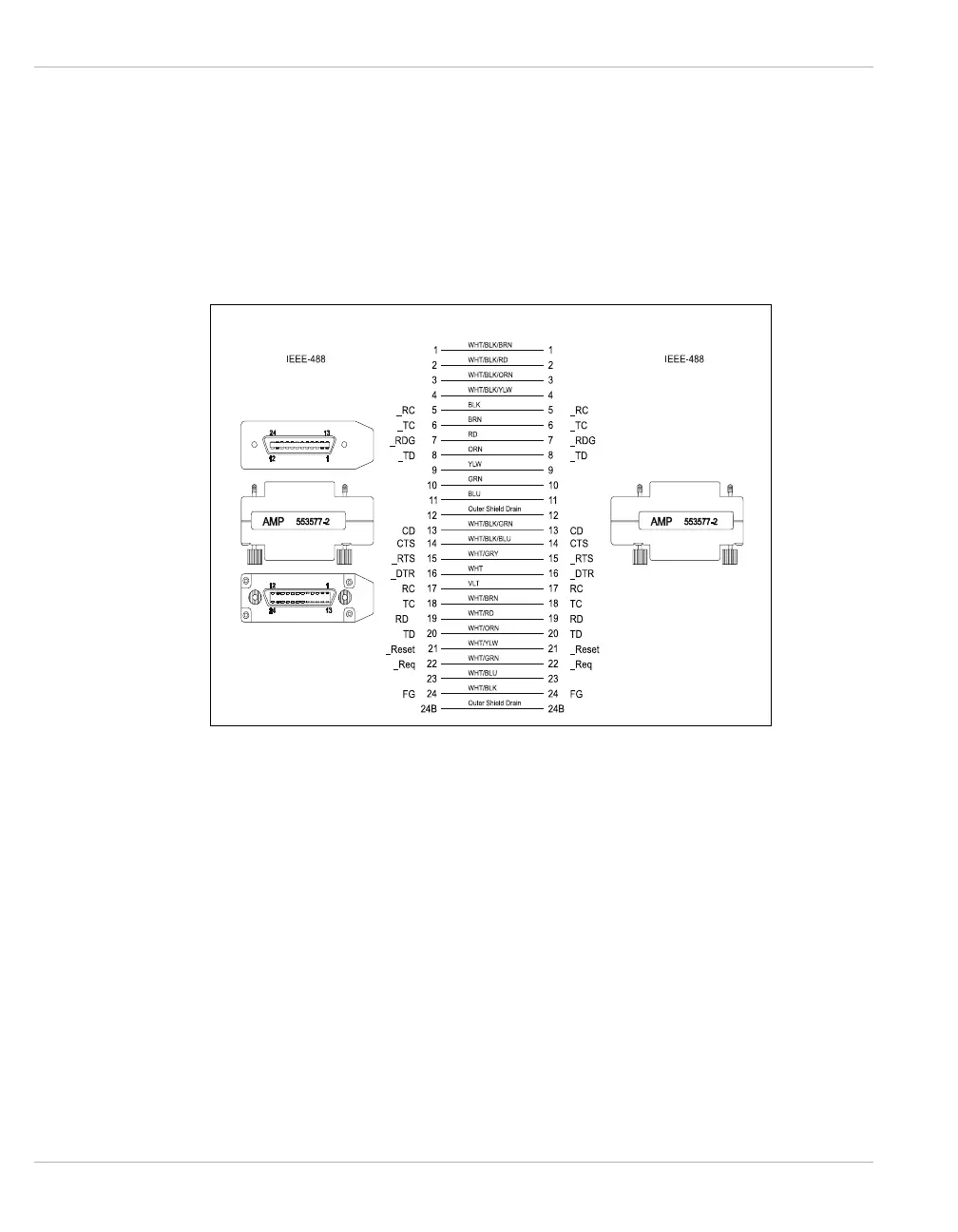

Figure 4-9 Type B Cable Pinouts
