CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-35
Type UTR-45-M
The Hypercom Type UTR-45-M cable (#810049-002) is a male RJ11 to male RJ45 cable.
The cable is used with the LTR61 port processor to provide a standard Token Ring RJ45 UTP
connection. The length of the cable is 15’. Figure 4-46 illustrates the pinout for the Type
UTR-45-M cable.

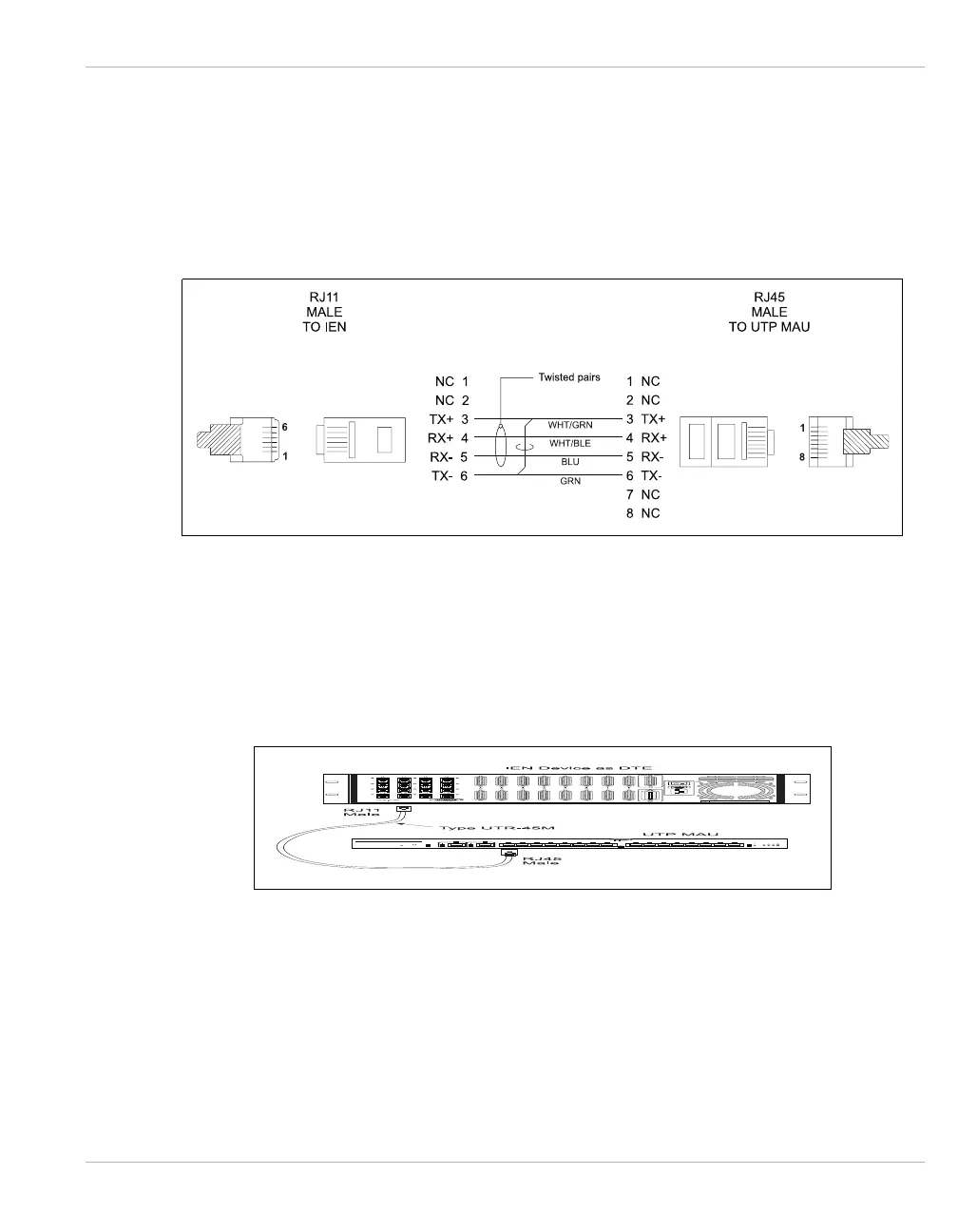

Figure 4-46 Type UTR-45-M Cable Pinouts
The Type UTR male RJ11 connector is attached to the appropriate line port of an IEN 2000,
IEN 3000, IEN 4000 or IEN 5000 chassis that corresponds with the slot containing the
LTR61 port processor. The Type UTR male RJ45 connector is attached to a UTP MAU. Figure
4-47 illustrates the use of the Type UTR-45-M cable.
Figure 4-47 Type UTR-45-M Cable
Notes: 1. The Type UTR-45-M cable must be attached to an RJ11 line port on the IEN 3000. Do not
attach the Type UTR-45-M cable to the RJ11 LAN port.
2. Do not use RJ45 cables that do not incorporate twisted pairs (the flat silver-satin cables).
Cables without twisted pairs do not offer the same noise protection as UTP cables.
3. The IEN 2000 and IEN 4000 chassis have T/R UTP ports that can be used with straight
RS45 cables, voiding the need for the UTR adapter cable.
