Hypercom IEN 1000 - Type VX

CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-41
Type VX
The Hypercom Type VX Cable (#810050-002) is a male DB25 to female V.35 cable. The
cable is used to connect a V.35 DTE user device to an IEN chassis. The IEN 1000 chassis,
the CID61, CID63 or CID15HA port processors provide a clock to the DTE. The length of
the cable is 10’. Figure 4-56 illustrates the pinout for the Type VX cable.

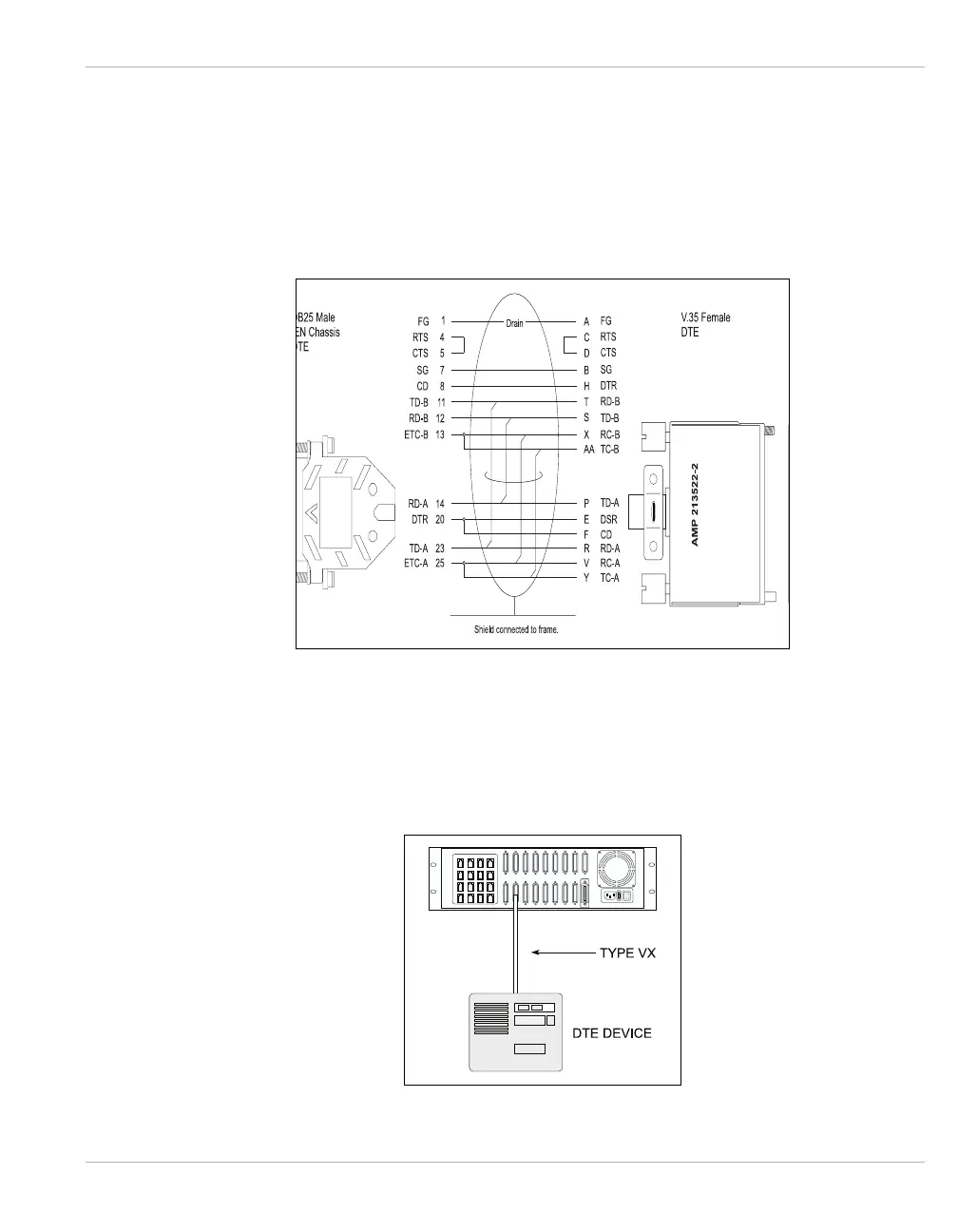

Figure 4-56 Type VX Cable Pinouts
The Type VX male DB25 connector is attached to the appropriate line port of an IEN 1000,
IEN 2000, IEN 3000, IEN 4000 or IEN 5000 chassis. The Type VX female V.35 connector is
attached to a V.35 DTE serial device. Figure 4-57 illustrates the use of the Type VX cable.
Figure 4-57 Type VX Cable
