CHAPTER 3
3-46 IEN HARDWARE REFERENCE 940043-002
ISD01-ST
The ISD01-ST module (Part #030117-001) provides a single ISDN BRI ST interface t0 the
CID63 port processor. The ISD01-ST module plugs into the Expansion Card A, sockets
CNEA1, CNEA2, CNEA3 and CNEA4, or Expansion Card B, sockets CNEB1, CNEB2,
CNEB3, and CNEB4 on the CID63 port processor. Figure 3-44 illustrates the front and
back of the ISD01-ST module.
Note: The ISD01-ST can only be installed in the first port.

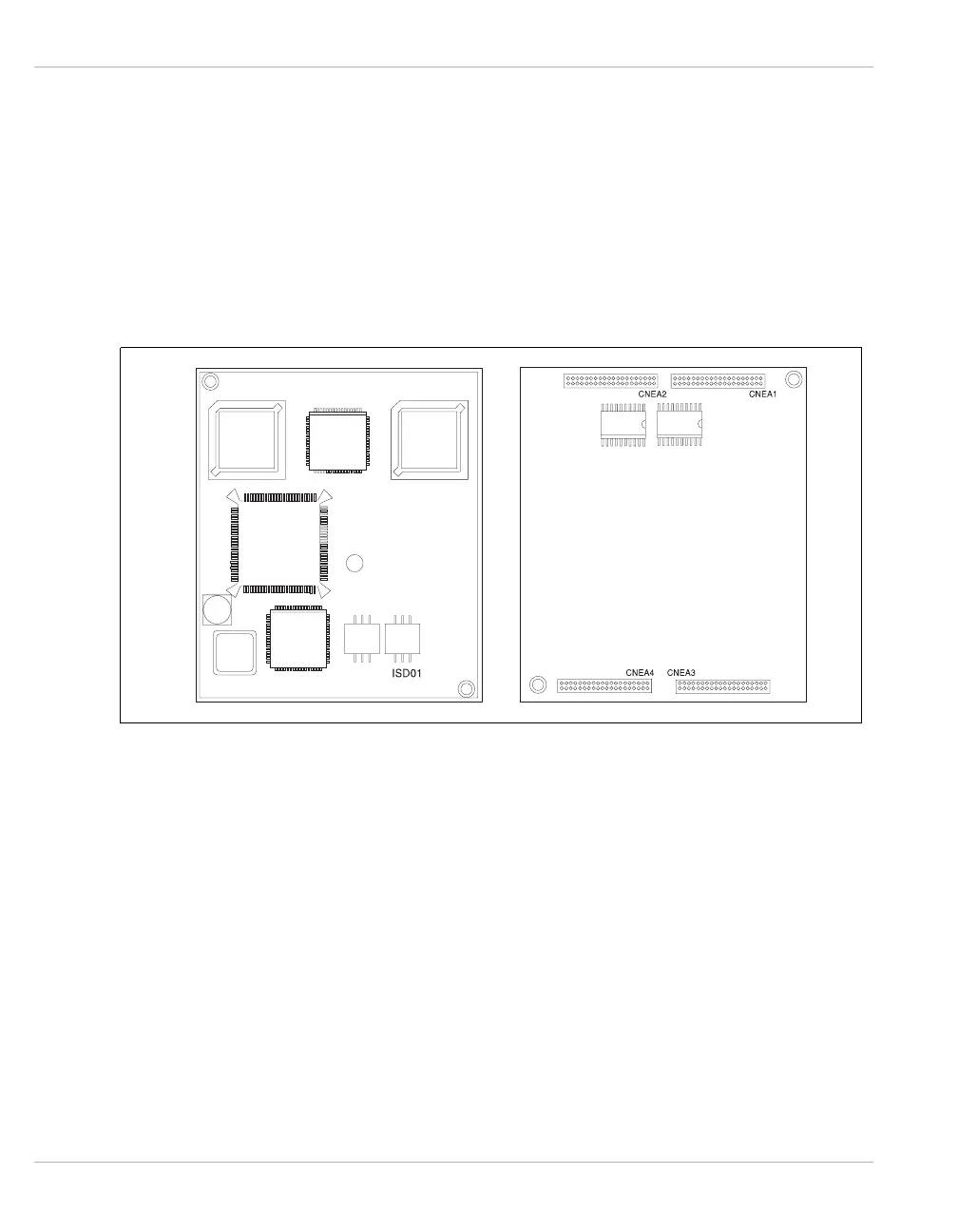

Figure 3-44 ISD01-ST Module
