CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-27
Type T1
The Hypercom Type T1 cable (#810035-001) is a male DB15 to male RJ11 cable. The
cable is used to connect an IEN chassis to a T1 CSU device. The length of the cable is 10’.

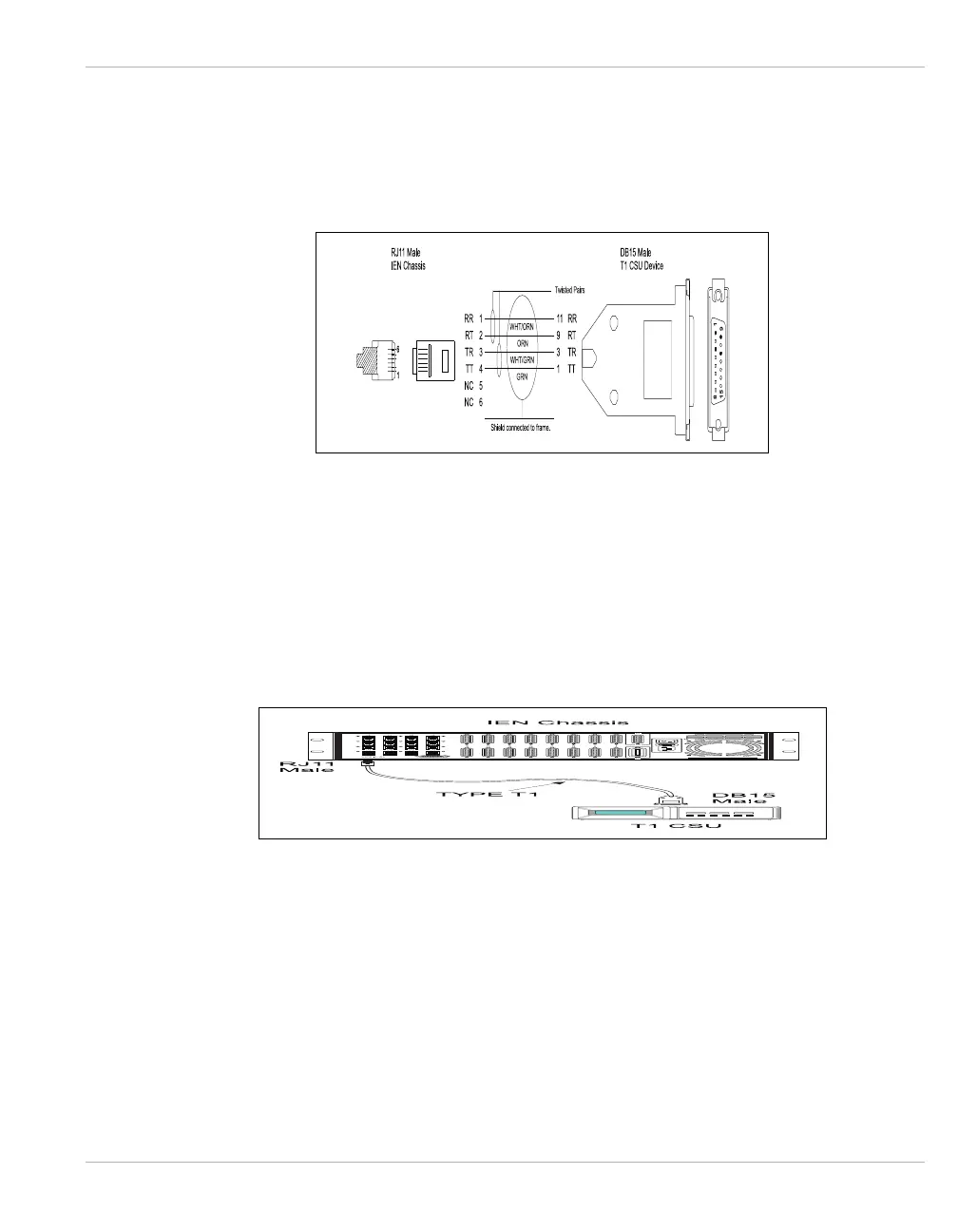

Figure 4-30 illustrates the pinout for the Type T1 cable.
Figure 4-30 Type T1 Cable Pinouts
Note: Some CSU pinouts may differ. Refer to the CSU documentation for the DB15 pinout
designations.
The Type T1 male RJ11 connector is attached to the RJ11 port on an IEN 2000, IEN 3000,
IEN 4000 or IEN 5000 chassis that corresponds to the slot occupied by the DSX11 or
DTC11-LHO port processor. The Type T1 male DB15 connector is attached to a CSU.
Figure 4-31 illustrates the use of the Type T1 cable.
Figure 4-31 Type T1 Cable Connection
