Type DDS
The Hypercom Type DDS cable (#810024-002) is a male RJ11 to male RJ45 cable. The
cable is used to connect a CID61 or CID63 port processor with an internal DSU, to the Telco
adapter. The length of the cable is 10’. Figure 4-16 illustrates the pinout for the Type DDS
cable.

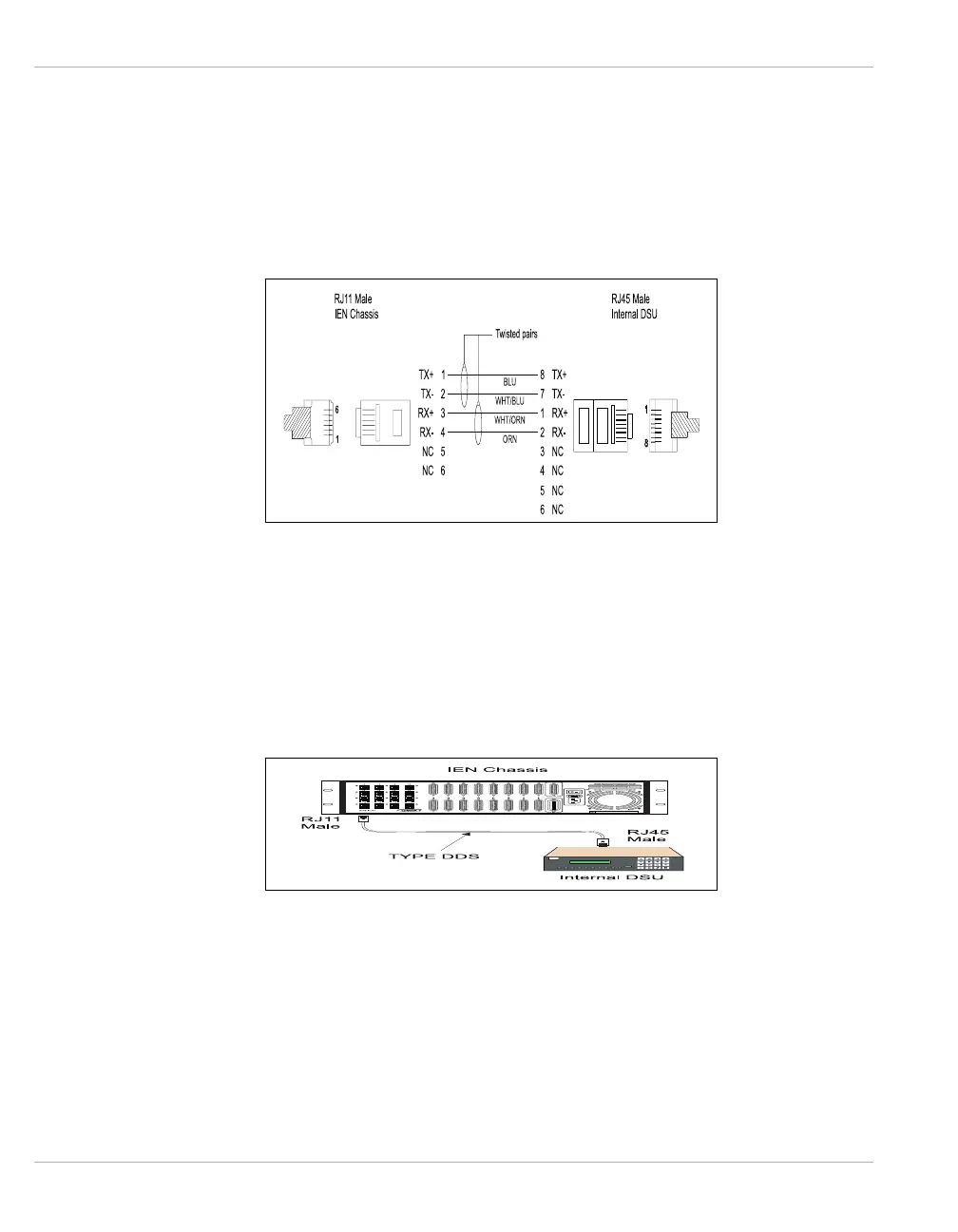

Figure 4-16 Type DDS Cable Pinouts
The Type DDS male RJ11 connector is attached to an IEN 2000, IEN 3000, IEN 4000 or
IEN 5000 chassis port that corresponds to the slot occupied by the CID61 or CID63 port
processor. When using the Type DDS cable with a CID63 port processor, the Type T(63)
cable is required. The male RJ45 connector is attached to the Telco connector. Figure 4-17
illustrates the use of a Type DDS cable.
Figure 4-17 Type DDS Cable
