CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-19
The Type D6 male DB25 connector is attached to the appropriate port of an IEN 2000,
IEN 3000, IEN 4000 or IEN 5000 chassis. The Type D6 female DB25 connector attaches to
the Type A male DB25 connector. Figure 4-15 illustrates the use of the Type D6 cable.

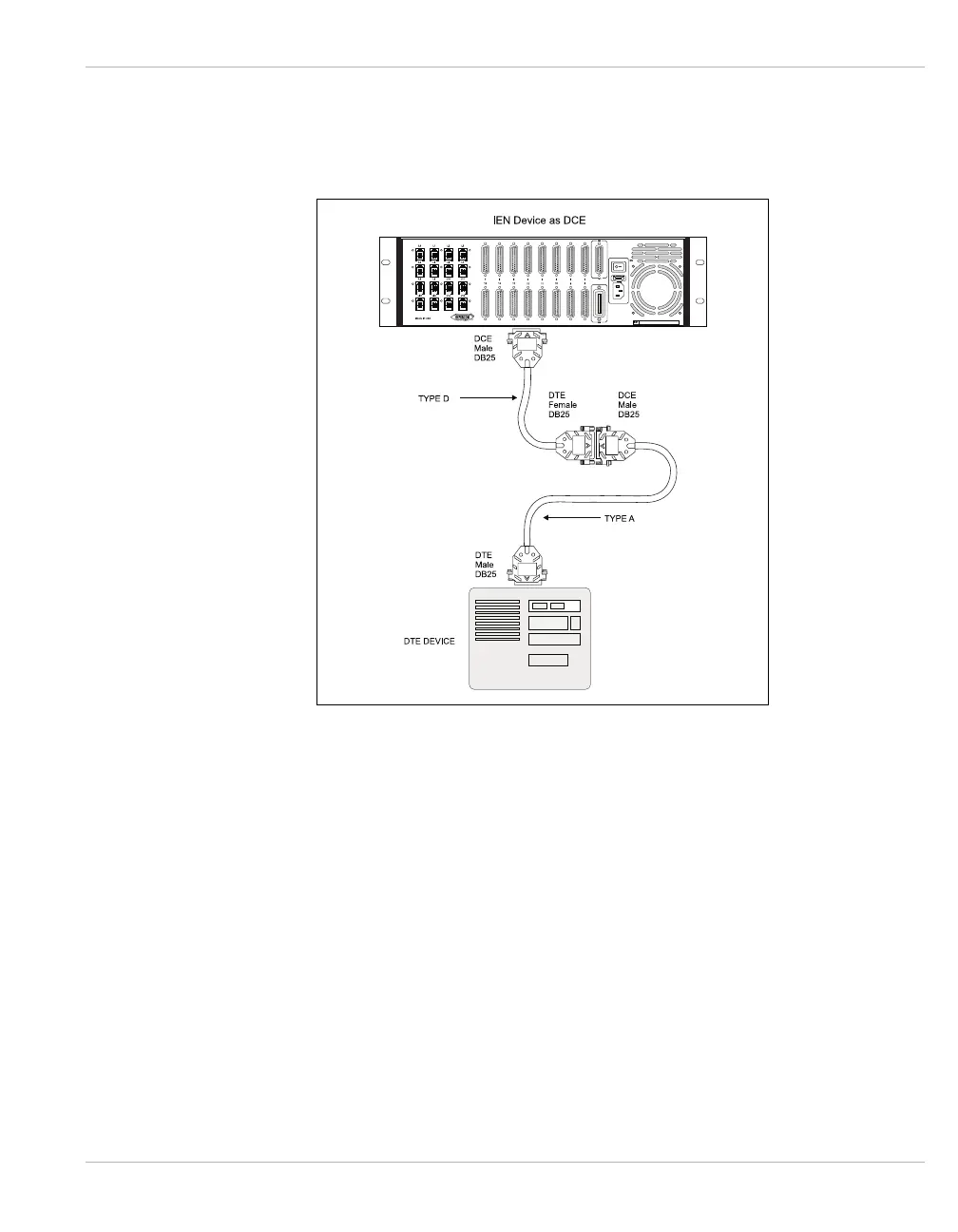

Figure 4-15 IEN Device as DCE
