CHASSIS
940043-002 INTEGRATED ENTERPRISE NETWORK 2-11
Backplane
The IEN 3000 chassis supports six port processors. The card cage also contains the power
supplies. Figure 2-6 illustrates the backplane of the IEN 3000 chassis.

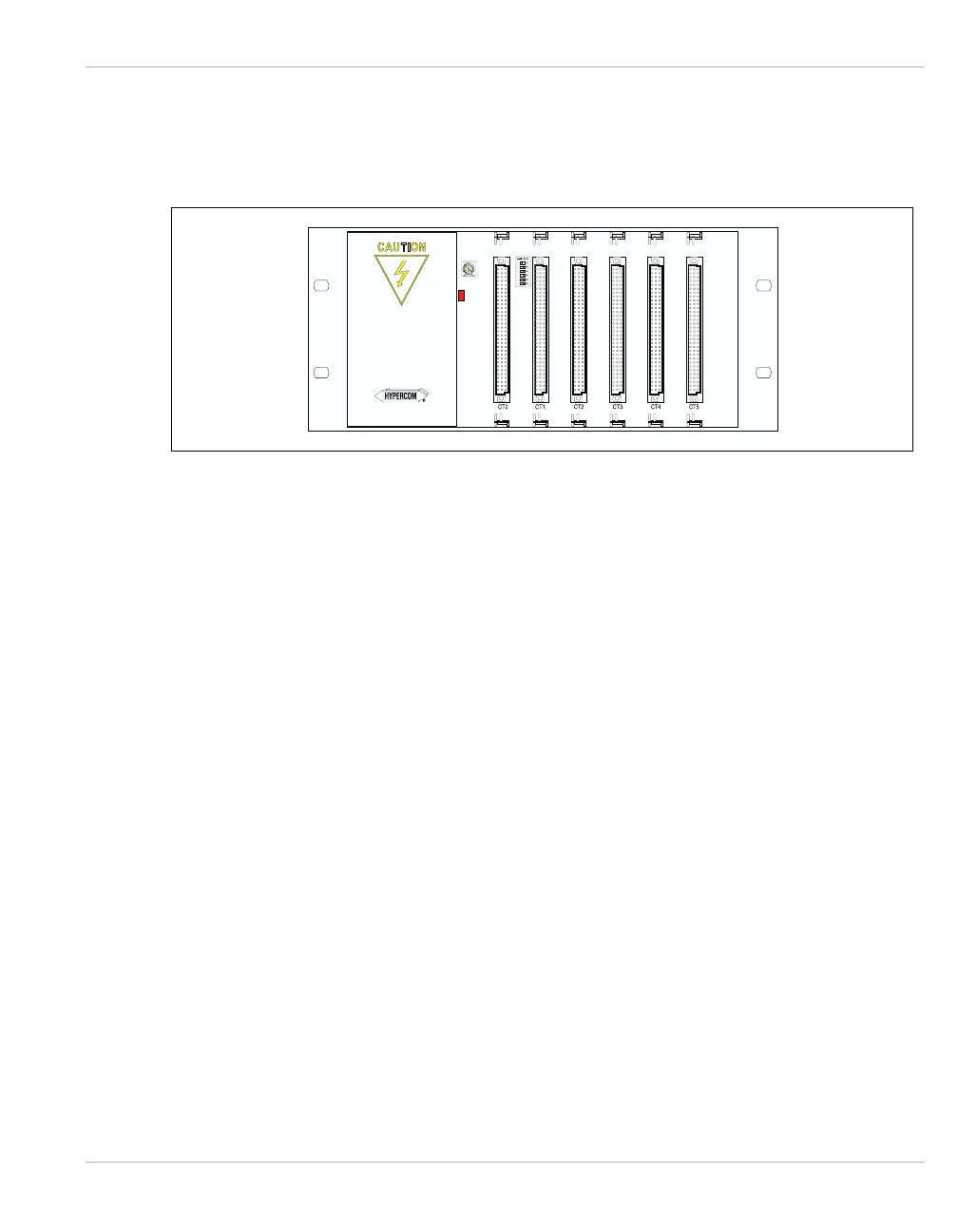

Figure 2-6 IEN 3000 Backplane
The backplane contains the port processor connectors, bus circuitry, and power
connections. The IEN 3000 chassis backplane is passive. That is, no one port processor
need be installed in a specific slot.
The IEN 3000 chassis backplane also contains configurations switches used to configure
multiple chassis as a single IEN node. Refer to Chapter 5, IEN 3000 Configuration for
more information about the IEN 3000 chassis backplane configuration switches.
