PORT PROCESSORS/MODULES
940043-002 INTEGRATED ENTERPRISE NETWORK 3-35
MODULES
The modules attach to port processors to support different configurations.
CIR01
The CIR01 module (Part #030149-001) is a single channel plug-in module that provides a
single RS232 interface to the CID63 port processor. The CIR01 module plugs into the
CNEA2 and CNL1 or CNEB2 and CNL2 sockets on the CID63 port processor. Figure 3-33
illustrates the front and back side of the CIR01 module.

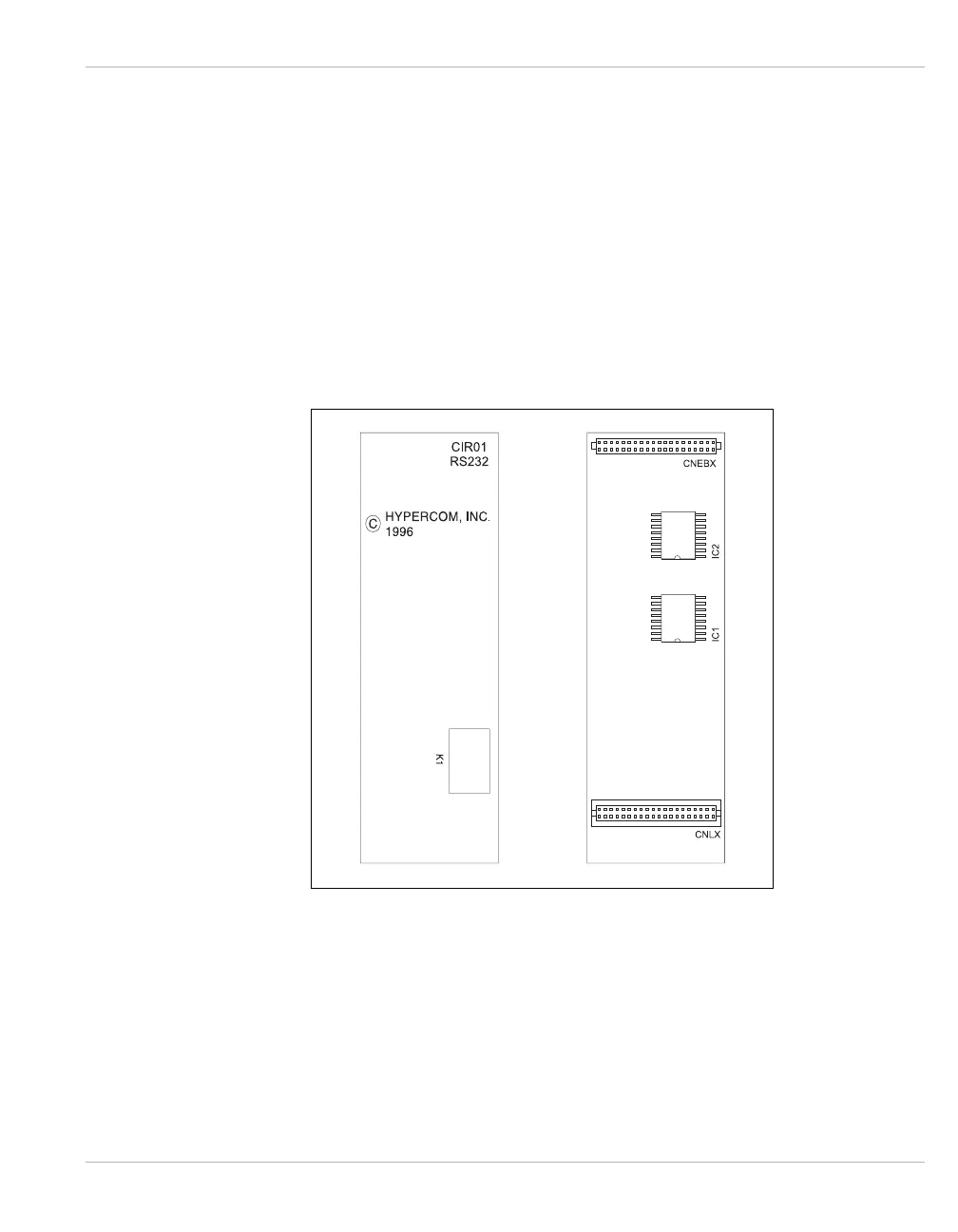

Figure 3-33 CIR01 Module
