IDT10
The IDT10 module (Part #030084-001) is a small module with an RJ45 that plugs into the
IEN 1000 motherboard when a DSU is installed. The ITD10 is an RJ45 jack and a
protective circuitry that allows access to the optional DSU. The ITD10 is provided with each
DSU.

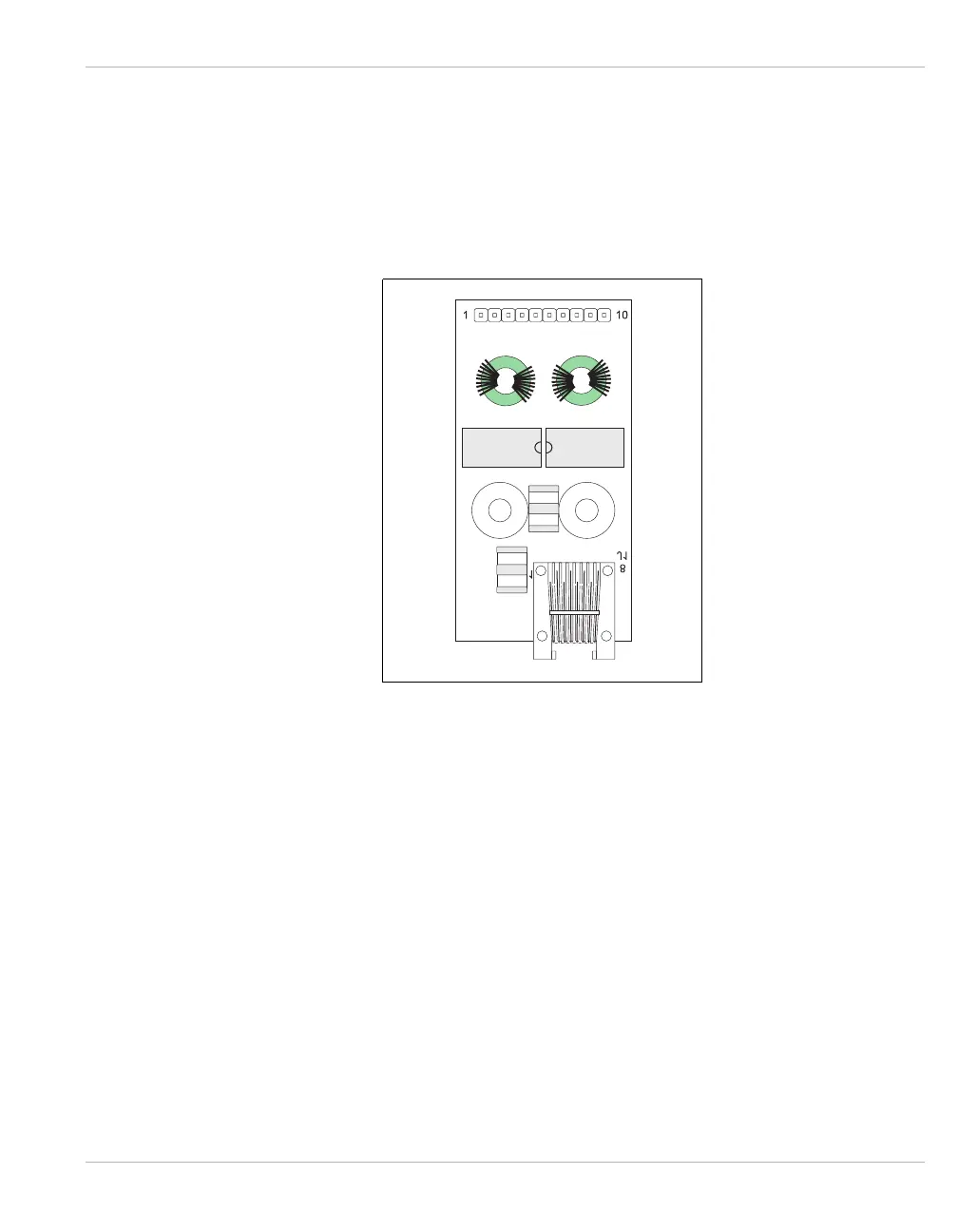

Figure 3-56 IDT10 Module
