PORT PROCESSORS/MODULES
940043-002 INTEGRATED ENTERPRISE NETWORK 3-59
HUB08
The HUB08 module (Part #030032-001) is an integrated Ethernet UTP hub supporting
eight RJ45 connections. The HUB08 module is used with the LET10 module to provide an 8
port 10Base-T manageable hub. The HUB08 is installed only in the IEN 1000 chassis.

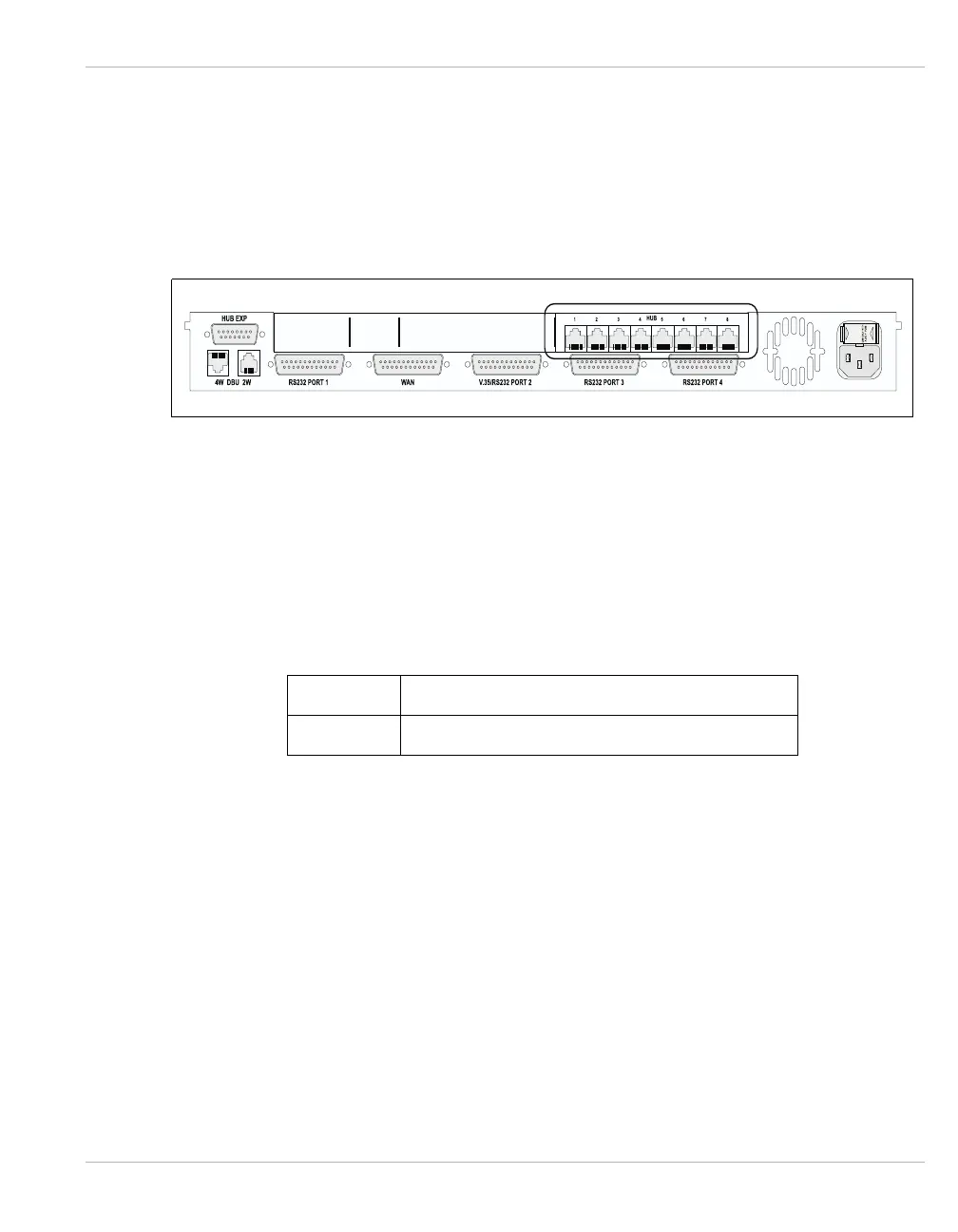

Figure 3-54 illustrates the interface connections for the HUB08 module.
Figure 3-54 HUB08 Interface
With the HUB08 and LET10 combination, the AUI and BNC ports of the LET10 belong to the
HUB08. The LET10 router defaults to the UTP port for network access. The LET10 UTP port
must be connected to one of the eight RJ45 hub ports. Hypercom provides an RJ45 straight
cable for use with the HUB08 and LET10 upgrade modules.
Table 3-19 lists the interface specifications for the HUB08 module.
Table 3-19 HUB08 Interface Specifications
Notes: 1. The RJ45 straight cable is included with the HUB08 upgrade module.
2. The LET10 upgrade module must be installed to use the HUB08.
3. Refer to Chapter 4, Cable Specifications & Adapters for more information about these
and other Hypercom cables.
HUB08
Eight RJ45 ports.
Cables
RJ45 straight cable used to connect UTP devices.
