CHAPTER 4
4-30 IEN HARDWARE REFERENCE 940043-002
Type T1-15-XF
The Hypercom Type T1-15-XF cable (#810099-001) connects a DSX11 or DTC11-LHO port
processor to a male DB15 T1 interface cable with a slip connector from a PBX. The cable
provides the crossover required between an IEN chassis and a PBX. The length of the cable

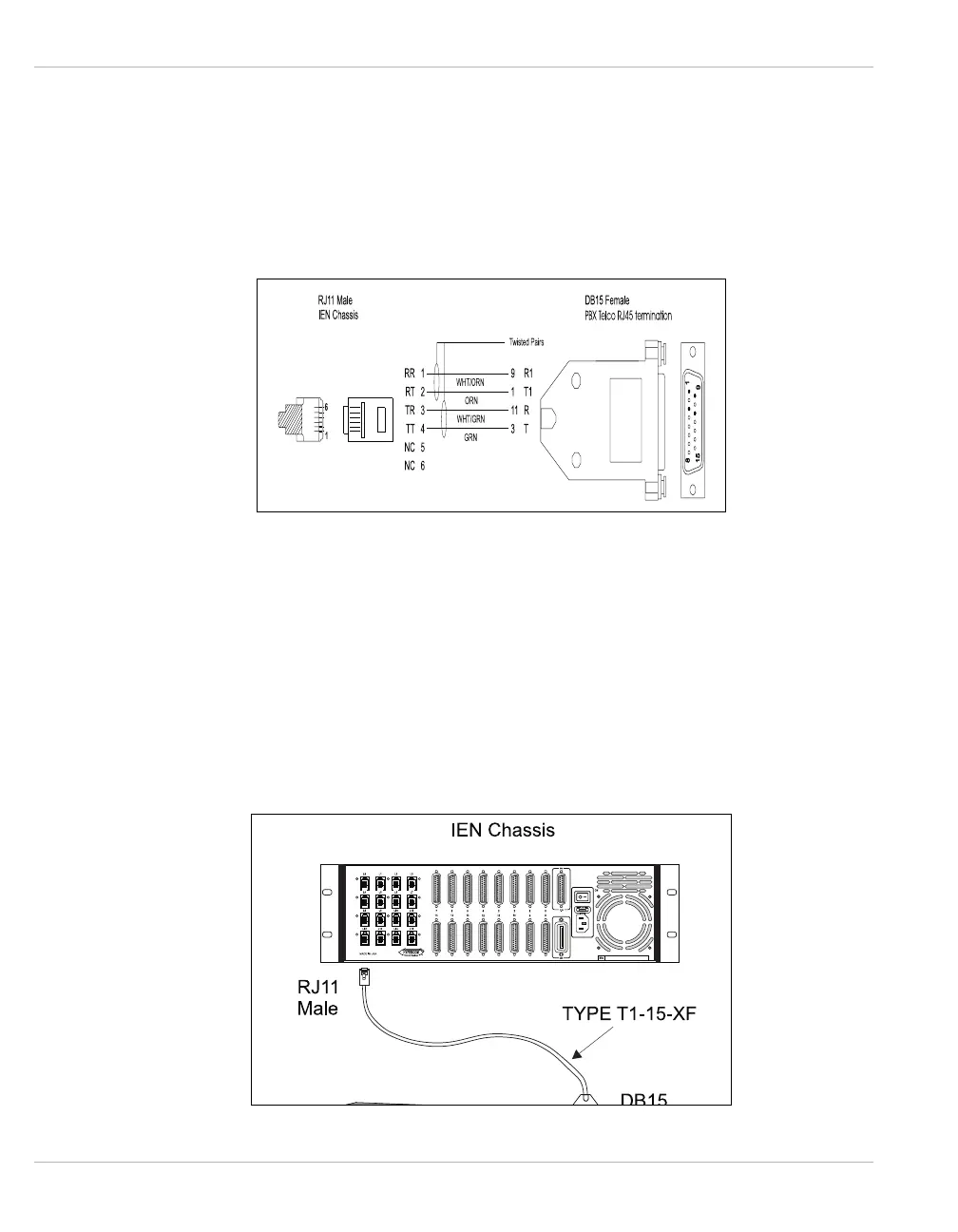

is 15’. Figure 4-34 illustrates the pinout for the Type T1-15-XF cable.
Figure 4-36 Type T1-15-XF Cable Pinout
The Type T1-15-XF male RJ11 connector attaches to the line port on the IEN 2000,
IEN 3000, IEN 4000 or IEN 5000 chassis that corresponds to the slot containing the DSX11
or DTC11-LHO port processors. The Type T1-15-XF female DB15 connector is attached to
the male DB15 T1 termination from a PBX Telco RJ45 termination.
Note: The Type T1-15-XF cable is used with the DSX11 or DTC11-LHO port processor.
Figure 4-37 illustrates the cable connection for the Type T1-15-XF cable.
Figure 4-37 Type T1-15-XF Cable Connection
