CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-23
Type ISDN
The Hypercom Type ISDN cable (#810111-002) is a male RJ11 to male RJ45 cable. The
cable is used to interface the ISDN-ST to Telco DEMARC or NT. The length of the cable is
10’. Figure 4-22 illustrates the pinout for the Type ISDN cable.

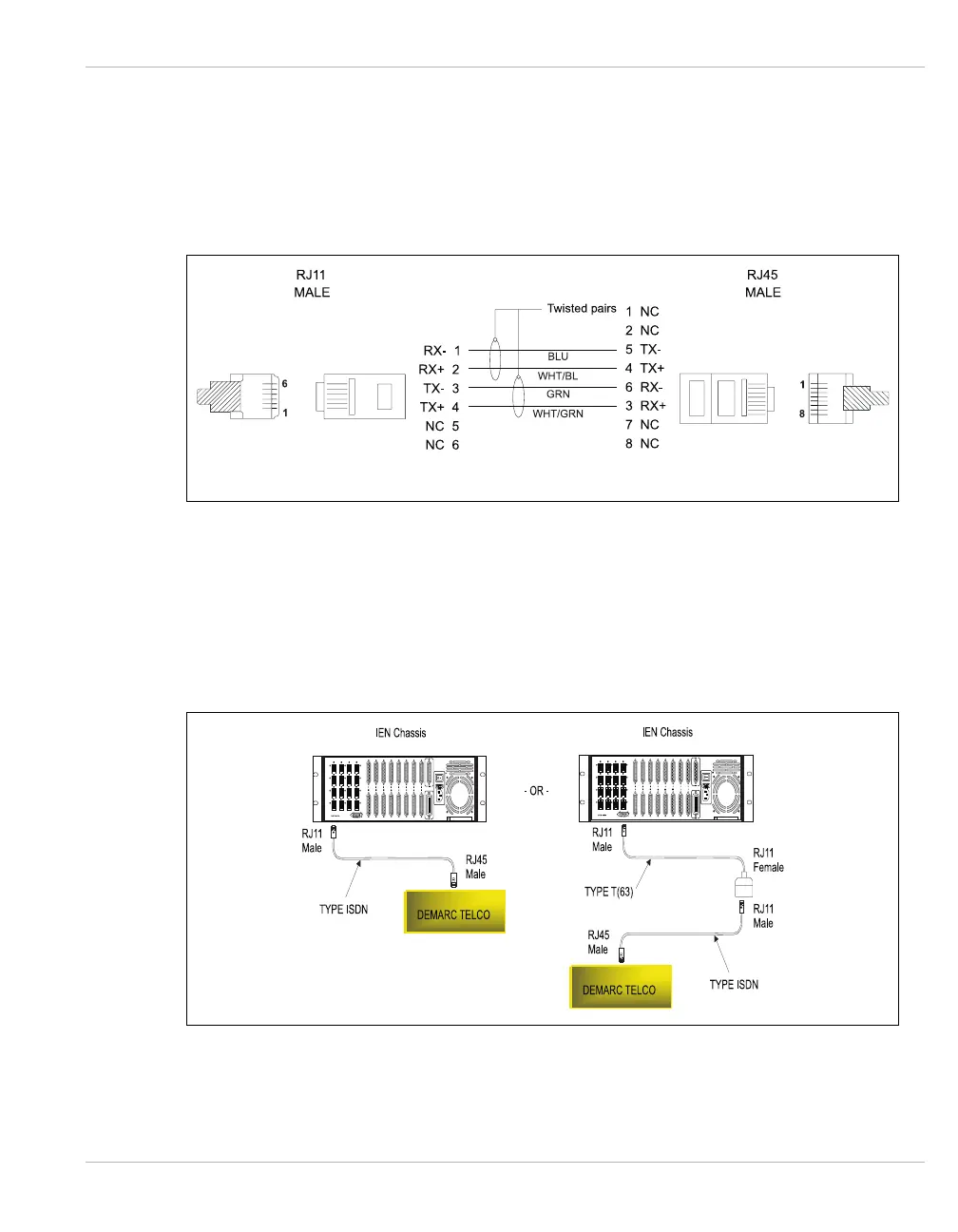

Figure 4-22 Type ISDN Cable Pinout
The Type ISDN male RJ45 connector plugs into the line port on the IEN 2000, IEN 3000,
IEN 4000 or IEN 5000 chassis. The Type ISDN male RJ45 connector is connected to the
Network Terminator. The Type T(63) cable can be used with the Type ISDN cable. Figure
4-23 illustrates the cable connection for the Type ISDN cable.
Figure 4-23 Type ISDN Cable Connection
