DLZ10
The DLZ10 module (Part #030033-002) is a single plug-in module that provides WAN data
compression, and communicates with a CID61 or CID63 port processor, and the IEN 1000
chassis. The DLZ10 module plugs into the CNS1 A and B sockets on the CID61 port
processor, the CNEA2 and CNL1 or CNEB2 and CNL2 sockets on the CID63 port
processor, or CNS2 A and B sockets in the IEN 1000 chassis. The DLZ10 module averages
between 3:1 and 4:1 compression which is dependent on the data being transferred.

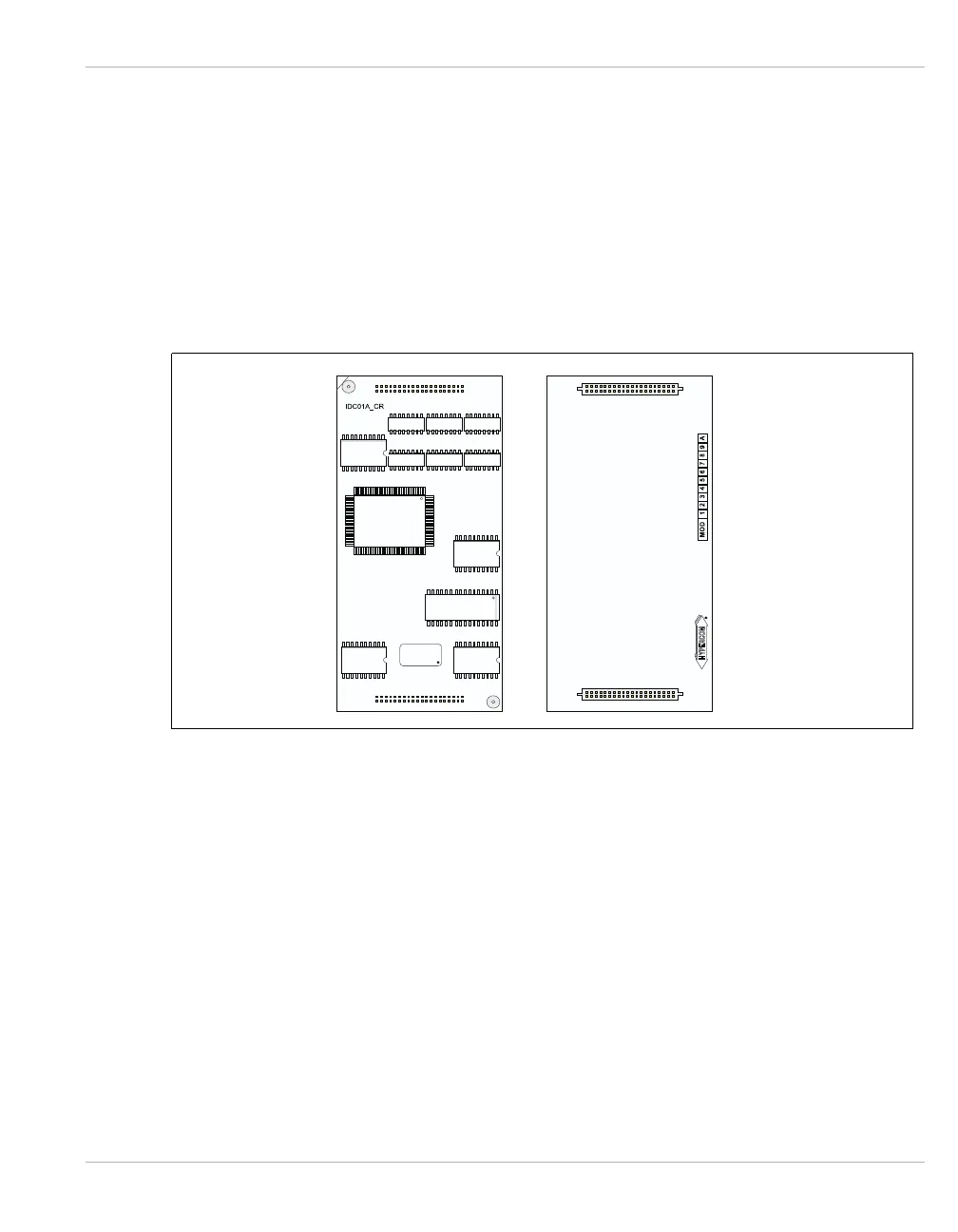

Figure 3-37 illustrates the front and back side of the DLZ10 module.
Figure 3-37 DLZ10 Module
