CHAPTER 4
4-38 IEN HARDWARE REFERENCE 940043-002
Type VM
The Hypercom Type VM cable (#810099-001) is a male DB25 to a male DB25 and male
V.35 cable. The cable is used with a CID61 port processor to provide an RS232 IENView
connection simultaneously with a connection to a V.35 DCE user device. The V.35 interface
is identical to Hypercom’s Type V cable and is typically connects to an external DSU or CSU.
The RS232 IENView interface is for an asynchronous connection to an external modem for
IENView dialup, or a direct IENView connection when used with a Type P cable. The length
of both cables are 10’. Figure 4-54 illustrates the pinout for the Type VM cable.

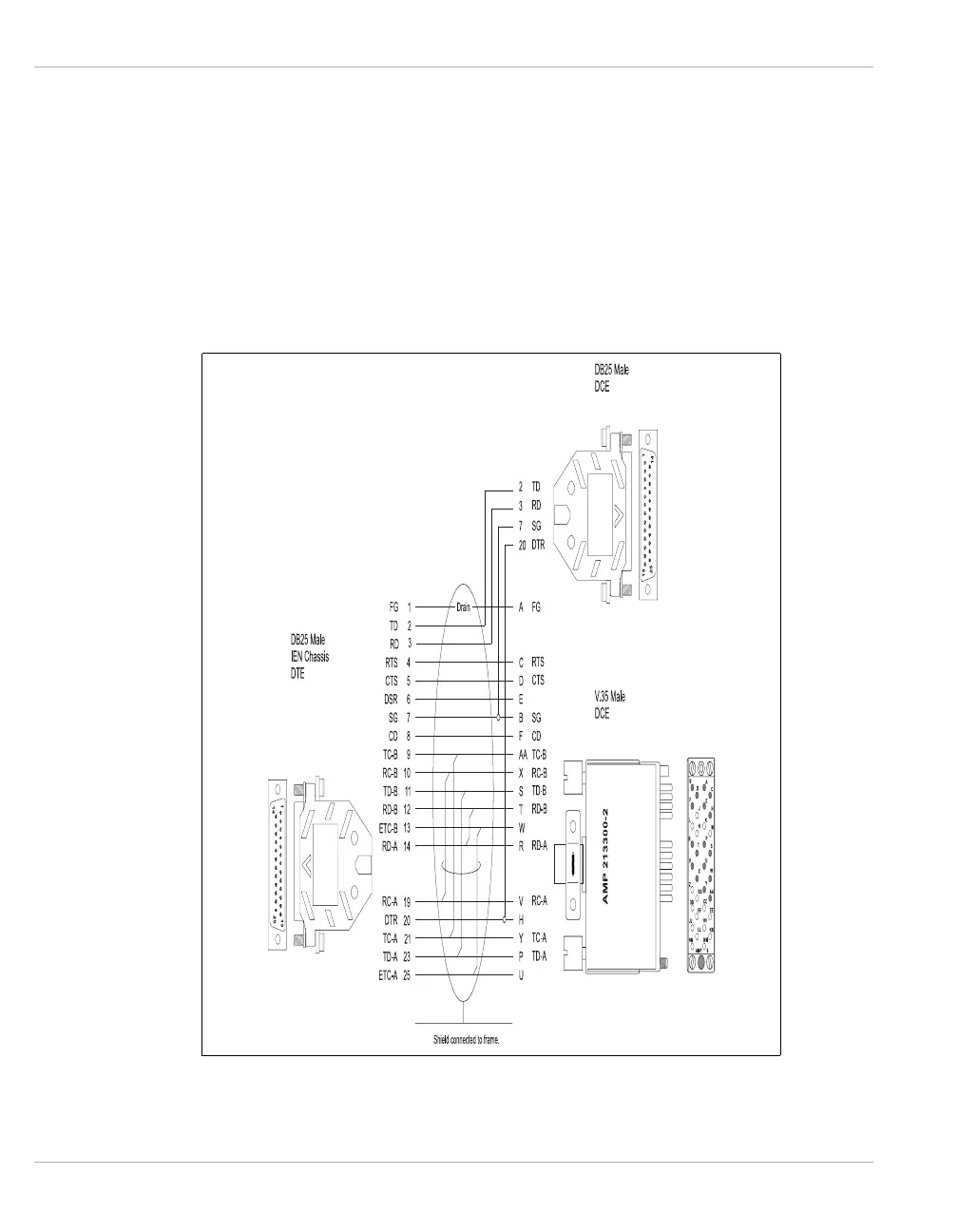

Figure 4-52 Type VM Cable Pinout
Note: The Type VM cable is used only with a CID61 WAN interface.
