CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-39
The Type VM male DB25 connector attaches to the port of an IEN 2000, IEN 3000,
IEN 4000 or IEN 5000 chassis. The Type VM male V.35 connector is attached to a V.35
serial device. The Type VM RS232 connector is attached to an RS232 asynchronous modem
or cross cable to an IENView PC. Figure 4-55 illustrates the cable connections for the Type
VM cable.

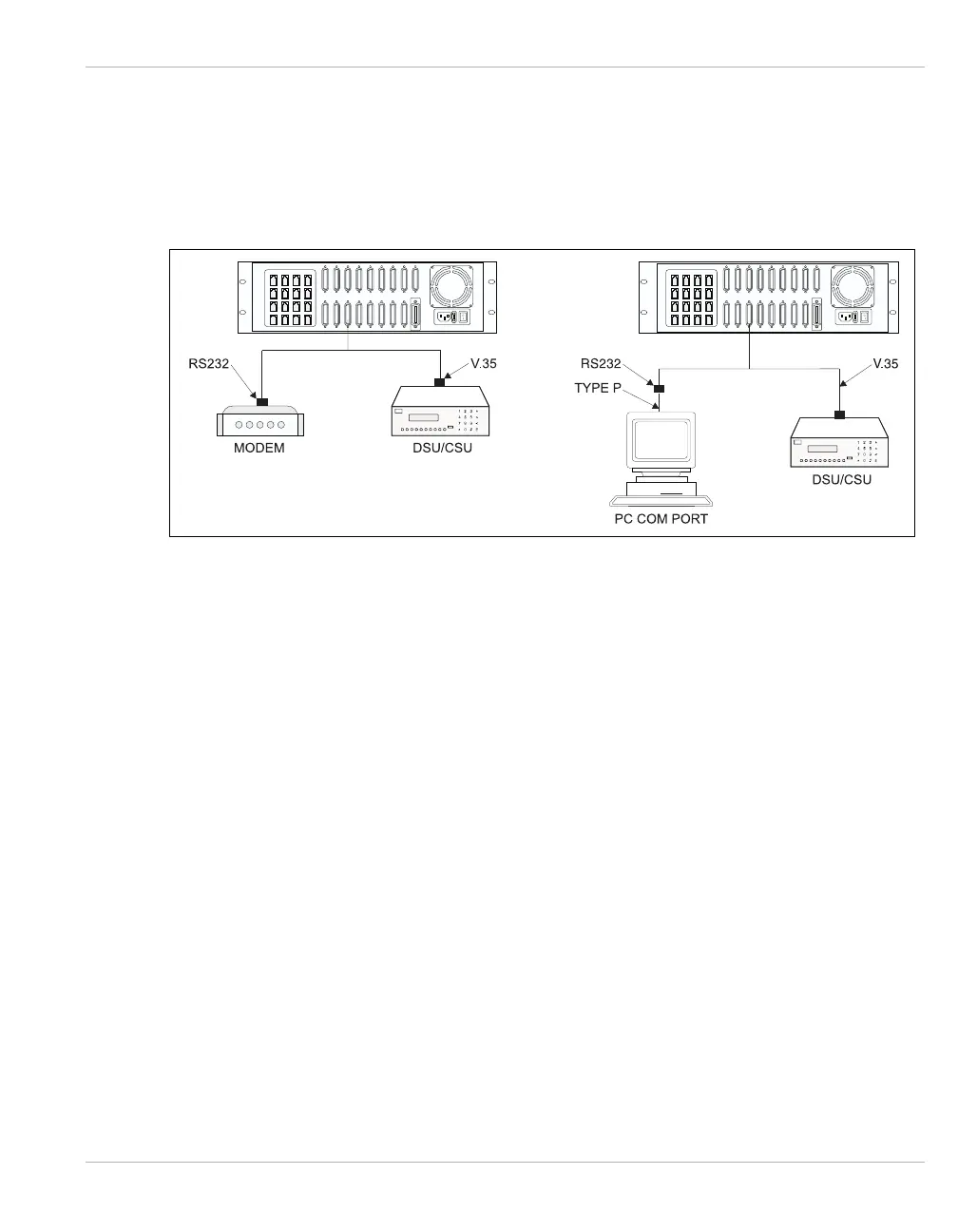

Figure 4-53 Type VM Cable Connections
Note: A female gender changer is required to attach the male DB25 connector of the Type VM to the
male DB25 connector of the Type P cable.
