CHAPTER 3
3-6 IEN HARDWARE REFERENCE 940043-002
CID15H/CID15H-A
The CID15H port processor (Part #030003-002) is designed to process most legacy
applications up to 56Kbps. The CID15H is capable of RS232 (DCE/DTE) or V.35 (DTE).

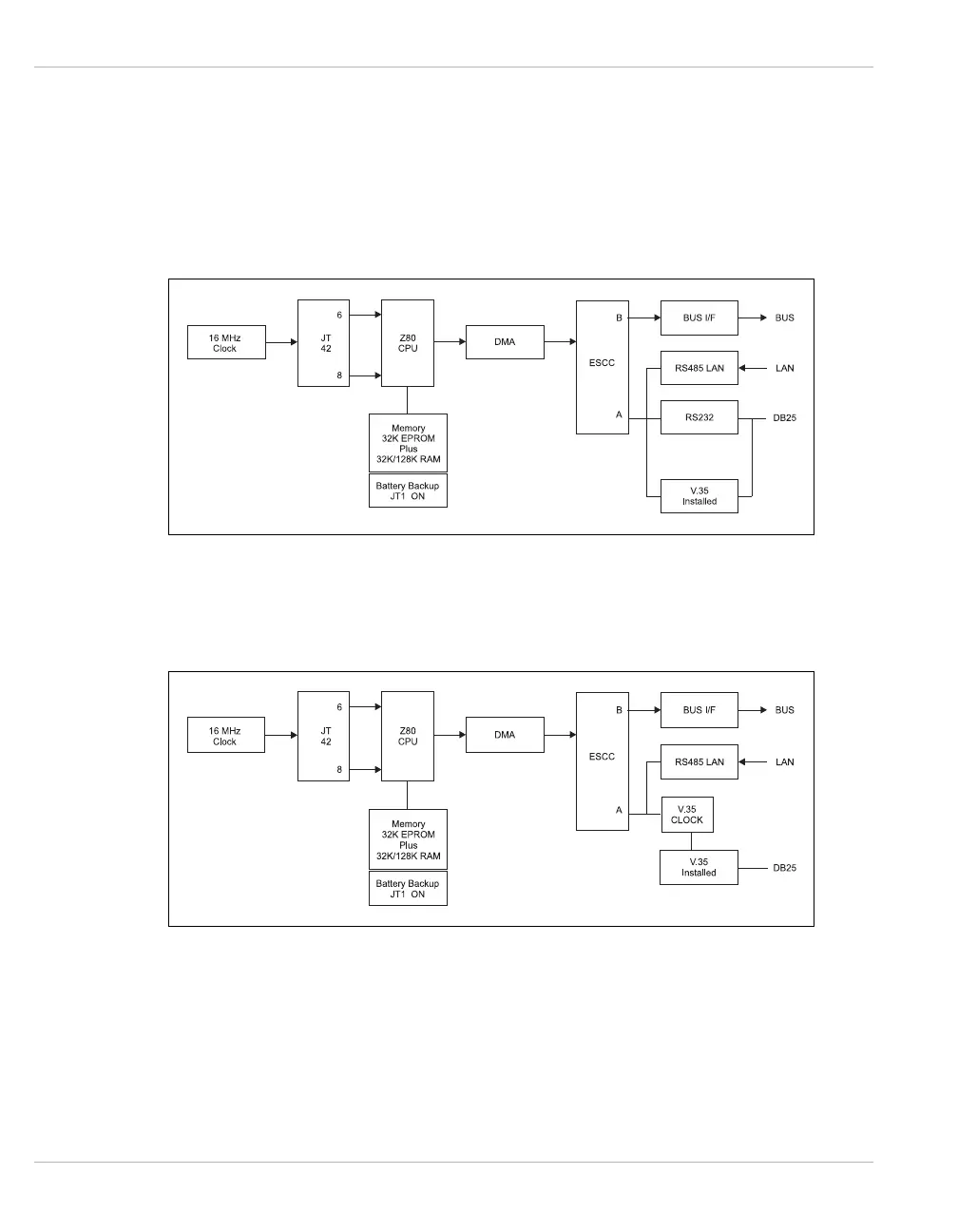

The CID15H-A port processor is only capable of V.35 (DCE). Figure 3-3 illustrates the block
diagram for the CID15H port processor.
Figure 3-3 CID15H Block Diagram
Figure 3-4 illustrates the block diagram for the CID15H-A port processor.
Figure 3-4 CID15H-A Block Diagram
Note: The optional DES01 encryption and DLZ01 compression modules may be used on the CID15H
port processor with software supporting these modules.
