PORT PROCESSORS/MODULES
940043-002 INTEGRATED ENTERPRISE NETWORK 3-5

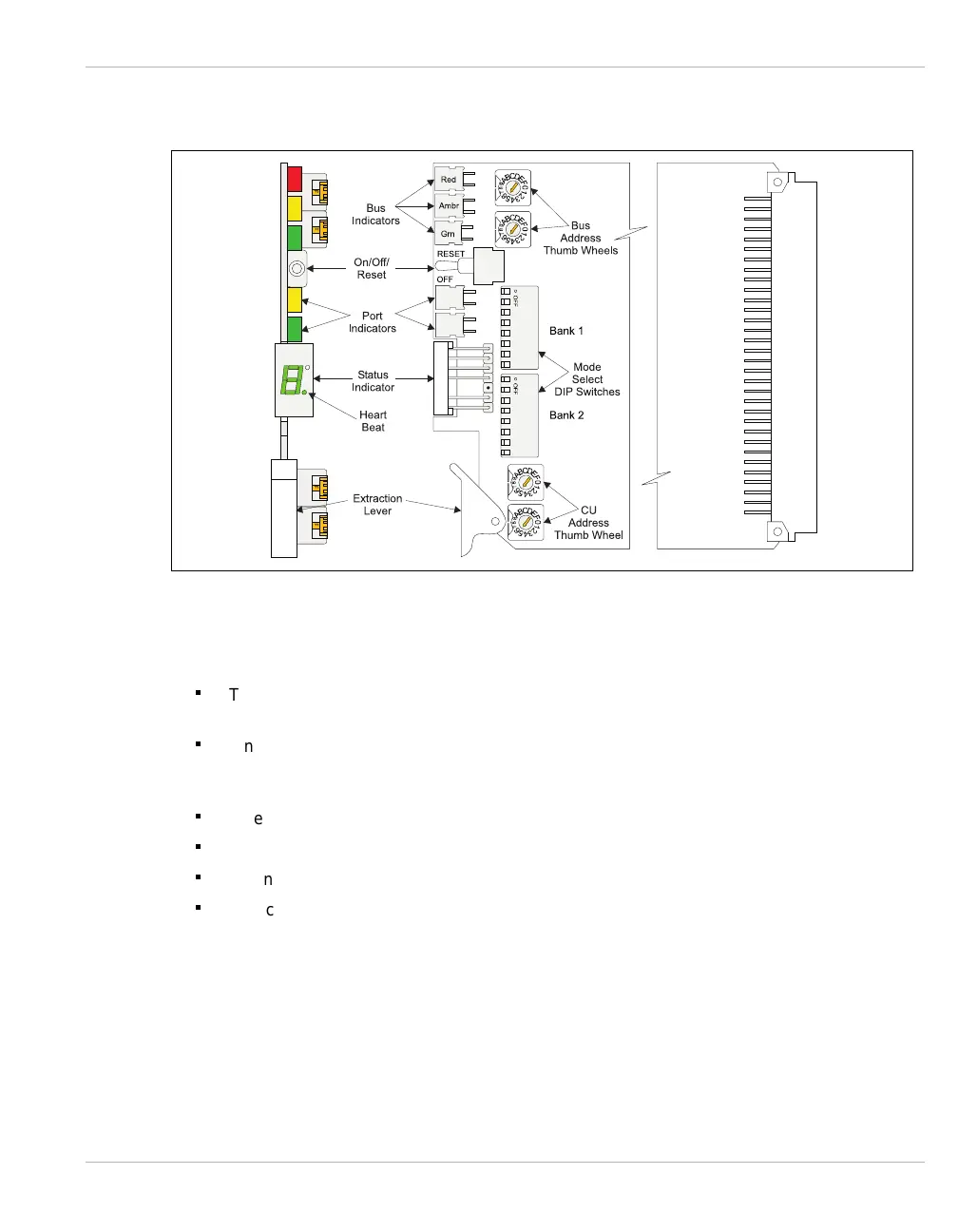

Figure 3-2 illustrates the common features of each type of port processor.
Figure 3-2 Port Processor Features
All Hypercom port processors consists of the following features:
n
Two pairs of 16-position rotary switches used to select the high nibble and low nibble of
the bus address and CU address.
n
On/Off/Reset toggle switch used to enable or disable power to the port processor, and
to perform a port processor restart after a modification (usually address changes) is
made.
n
One pair of Mode Select DIP switches used to configure the port processor and software.
n
Bus LEDs that provide transmit, receive, and bus traffic status.
n
Seven-segment LED display that provides a current operational status.
n
Extractor lever which simplifies removing a port processor from a chassis.
