Type UET
The Hypercom Type UET cable (#810017-002)is a male RJ45 to male RJ11 cable. The
cable is used with the Hypercom Ethernet port processors to provide a standard male RJ45
connector. The length of the cable is 10’. Figure 4-44 illustrates the pinout for the Type UET
cable.

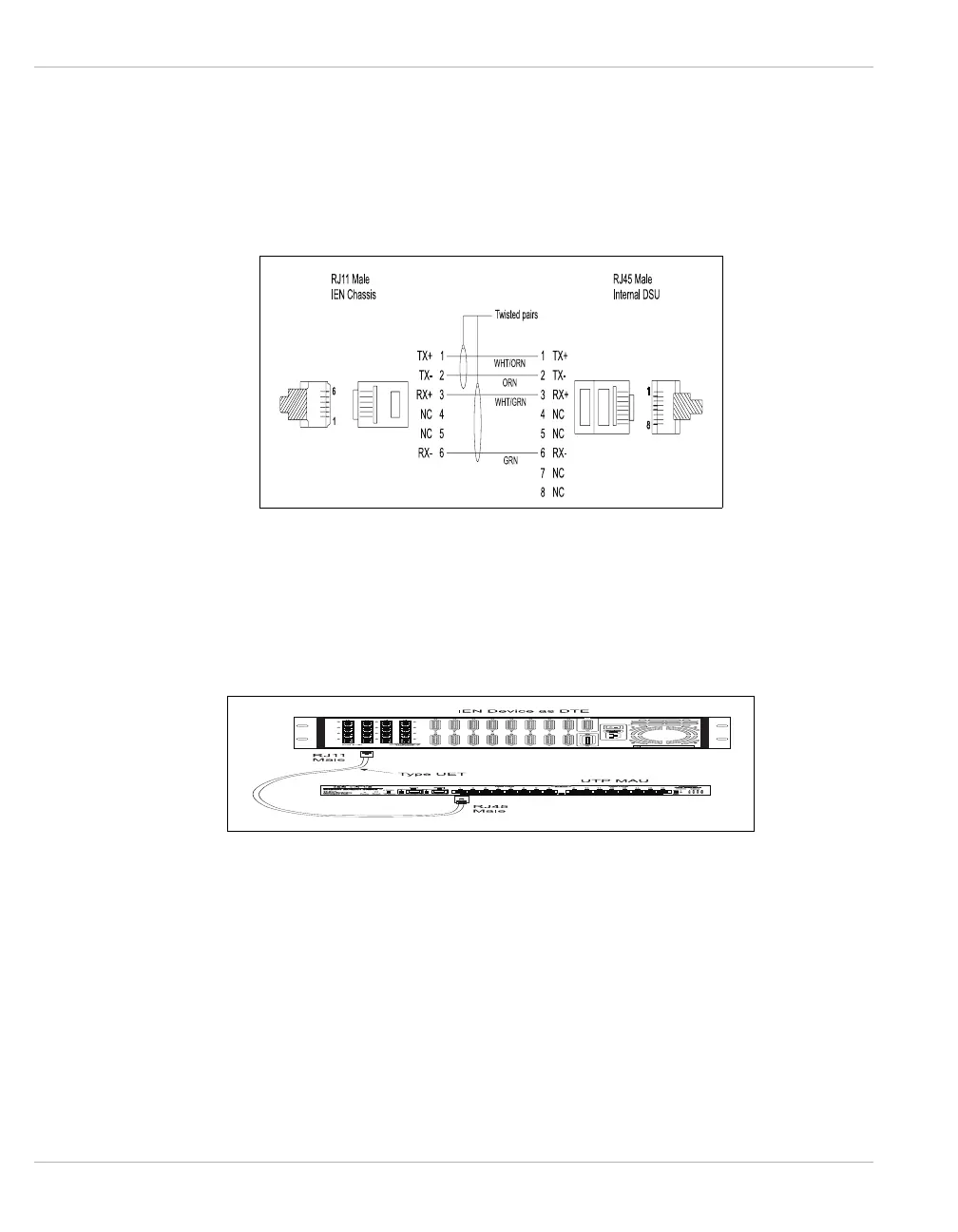

Figure 4-44 Type UET Cable Pinouts
The Type UET male RJ11 connector is attached to the appropriate line port of an IEN 2000,
IEN 3000, IEN 4000 or IEN 5000 chassis that corresponds the slot containing the LET61
port processor. The Type UET male RJ45 connector is then plugged into the appropriate
female RJ45 UTP hub port. Figure 4-45 illustrates the use of the Type UET Cable.
Figure 4-45 Type UET Cable
Notes: 1. The Type UET cable must be attached to an RJ11 line port on the IEN 3000. Do not
attach the Type UET cable to the RJ11 LAN port.
2. Do not use RJ45 cables that do not incorporate twisted pairs (the flat silver-satin cables).
Cables without twisted pairs do not offer the same noise protection as UTP cables.
