Type Y
The Hypercom Type Y cable (#810021-001)is a male DB25 to three female DB25 cable.
The cable is used to connect a CID61 port processor to three RS232 DTE ports. The CID61
port processor provides clocking. The length of the cable is 3’. Figure 4-58 illustrates the
pinout for the Type Y cable.

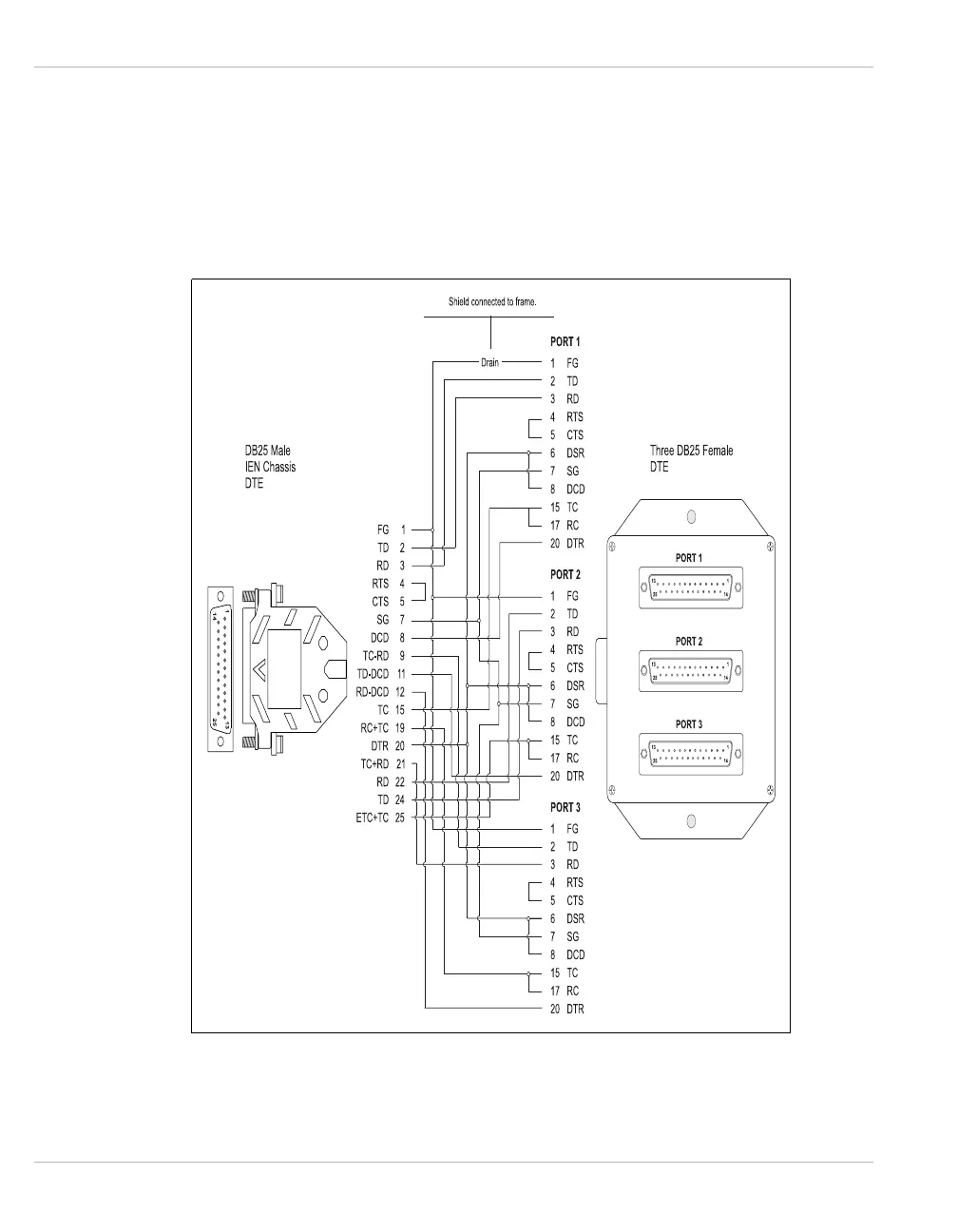

Figure 4-58 Type Y Cable Pinouts
