CHAPTER 4
4-36 IEN HARDWARE REFERENCE 940043-002
Type V
The Hypercom Type V cable (#810018-001) is a male DB25 to male V.35 cable. The cable
is used to connect an IEN chassis to a V.35 DCE device. The length of the cable is 10’.

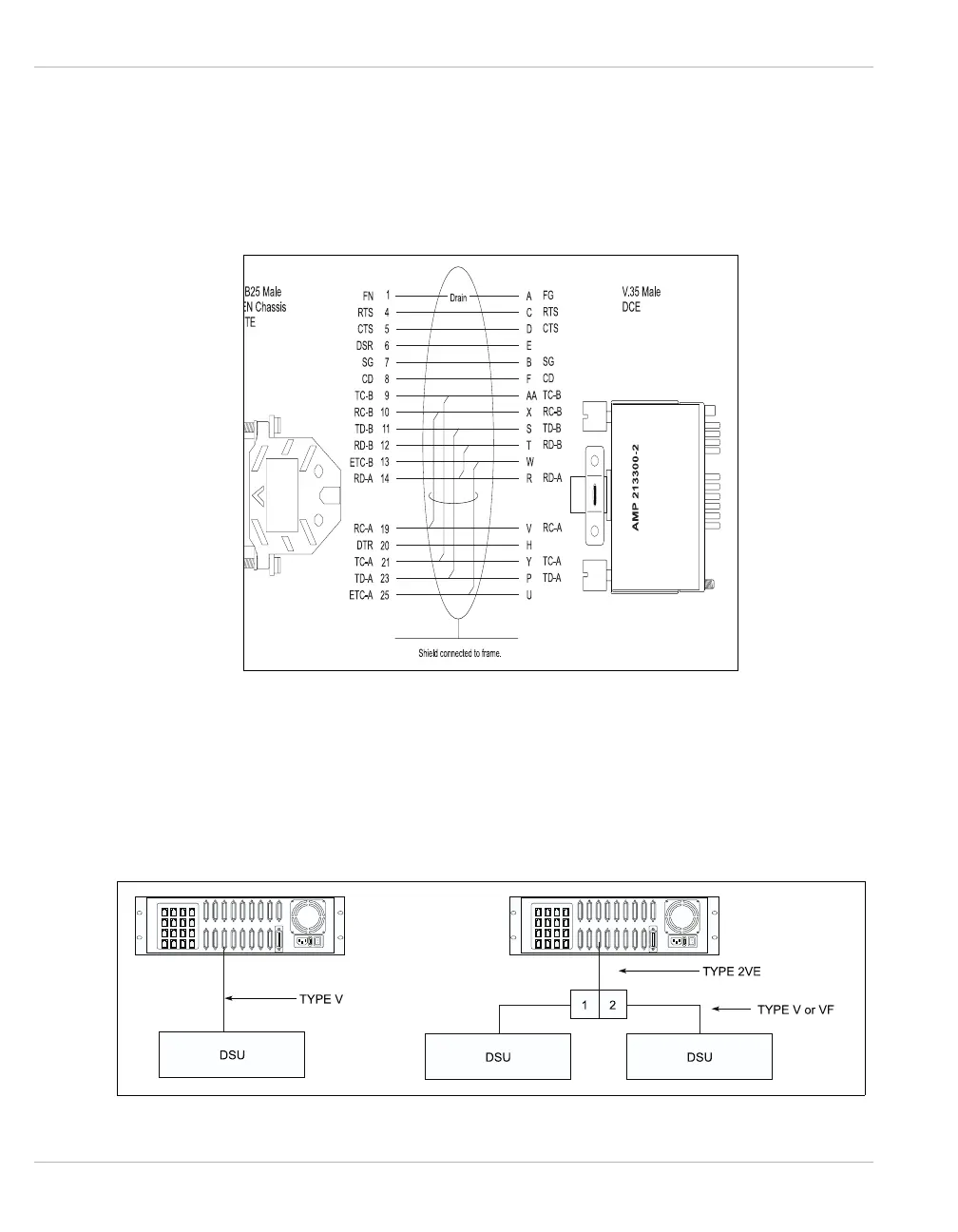

Figure 4-48 illustrates the pinout for the Type V cable.
Figure 4-48 Type V Cable Pinouts
The Type V male DB25 connector is attached to the appropriate port of an IEN 1000, IEN
2000, IEN 3000, IEN 4000 or IEN 5000 chassis. The Type V male V.35 connector is
attached to a V.35 DCE serial device. Figure 4-49 illustrates the use of the Hypercom
Type V cable.
Figure 4-49 Type V Cable
