CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-13
The Type ALG-PD male DB25 connector attaches to the line port on the IEN 2000,
IEN 3000, IEN 4000 or IEN 5000 chassis slot that contains the DLA14 port processor. The
cable is then punched down to an 66-Block using the color codes in the Figure below to
identify the correct connections to a PBX. Figure 4-5 illustrates the pinout for the Type ALG-
PD (two 4-wire) cable.

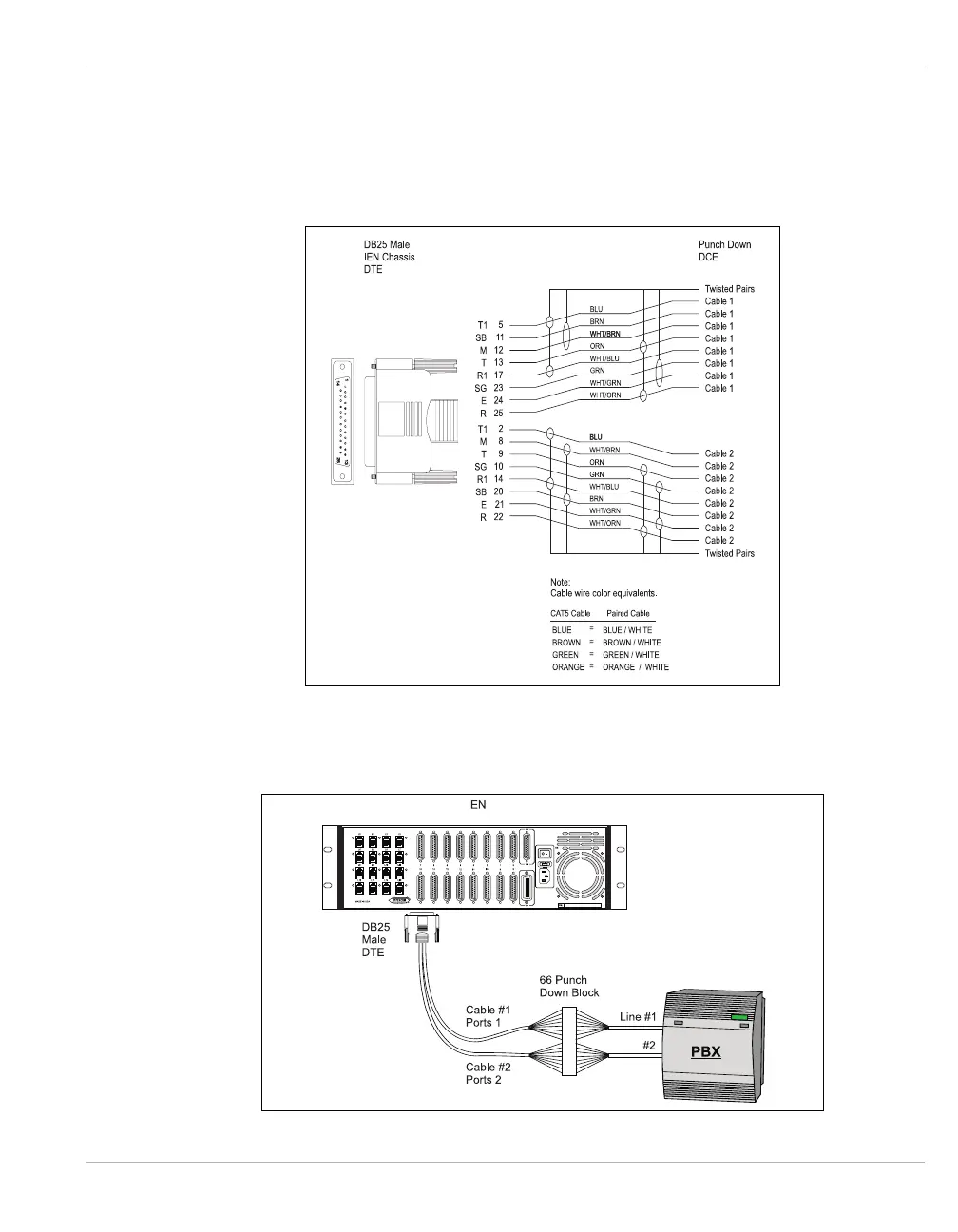

Figure 4-7 Type ALG-PD (Two 4-Wire) Cable Pinout
Figure 4-8 illustrates the cable connection for the Type ALG-PD (two 4-wire) cable.
Figure 4-8 Type ALG-PD Cable Connection (Two, 4-Wire)
