CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-15
The Hypercom Type B cable connects up to three IEN 3000 or IEN 5000 bus extension ports
to create a single node. The end points of an extended bus (master and redundant chassis)
require terminators attached to the Type B cable connectors. Figure 4-10 illustrates the two-
chassis bus extension termination.

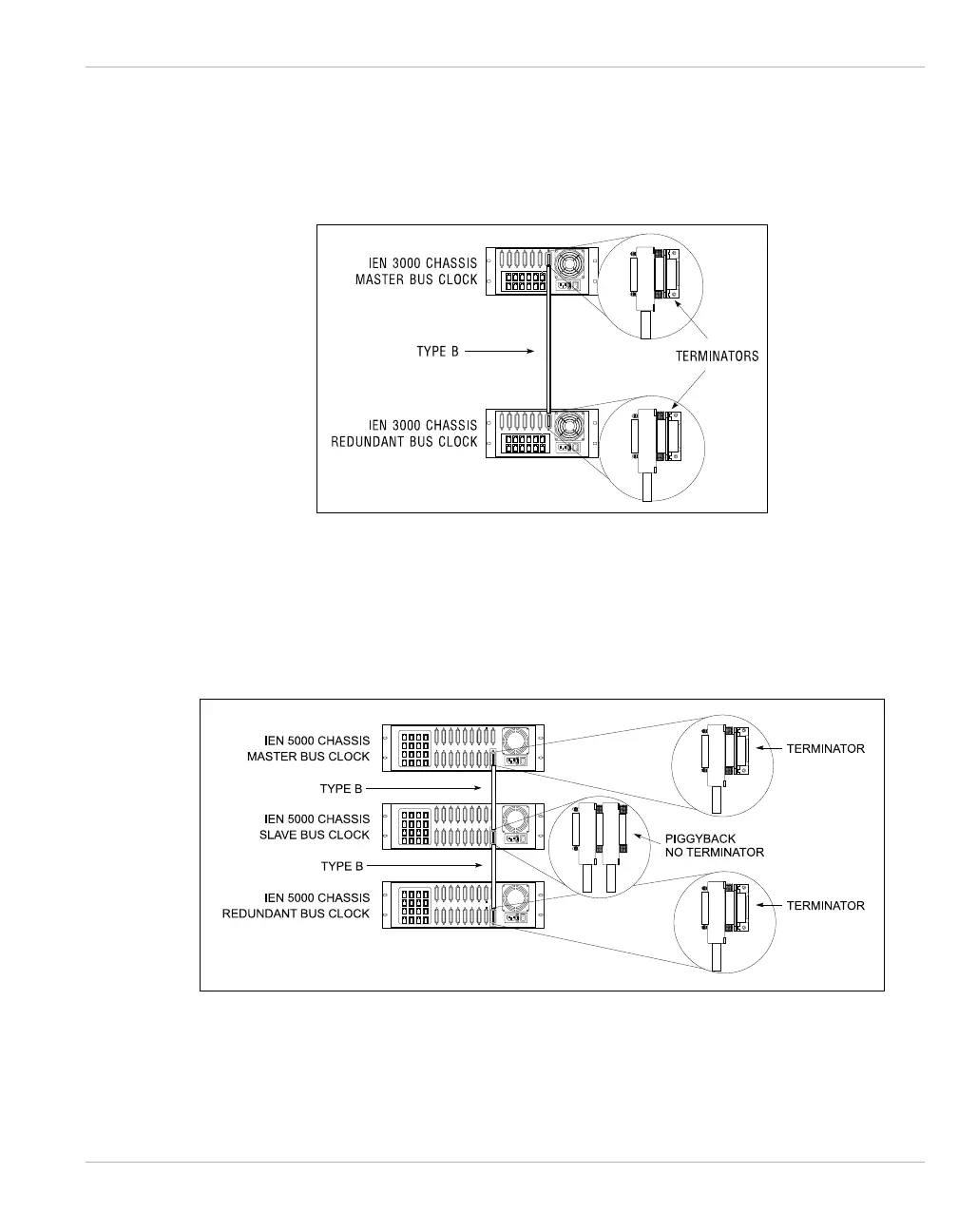

Figure 4-10 Chassis Bus Extension Termination
The Type B cable can be piggybacked to connect three IEN 3000 or IEN 5000 chassis. The
slave chassis does not require a terminator. Figure 4-11 illustrates the three-chassis bus
extension termination.
Figure 4-11 Bus Extension Termination
