CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-47

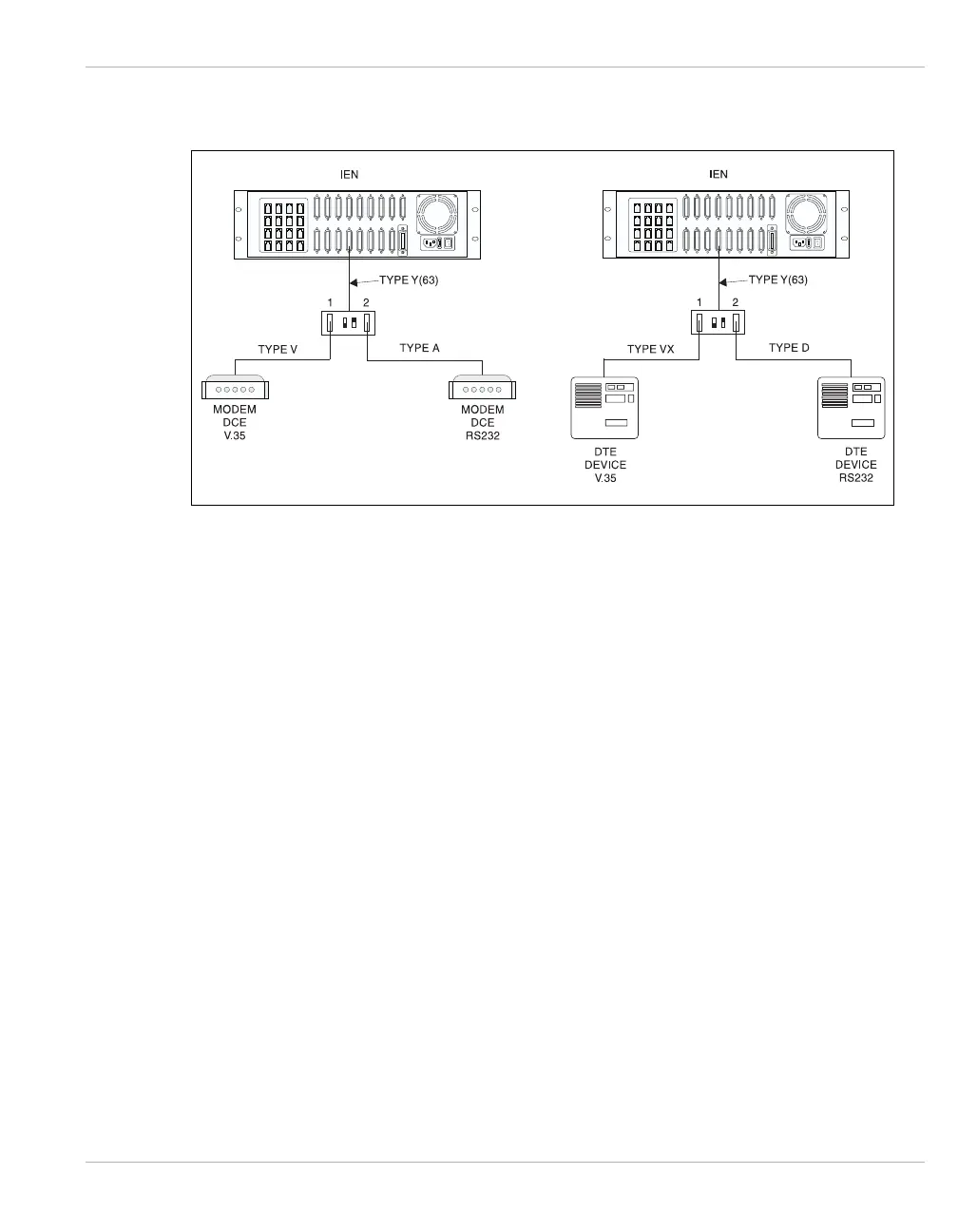

Figure 4-65 illustrates the cable connections for the Type Y(63) cable.
Figure 4-63 Type Y(63) Cable Connection
There is a set of switches on the Type Y(63) cable DB25 connectors for the CID63 port that
must be set to the appropriate RS232 or V.35 settings.
