CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-49
The Type 2VE male DB25 connector is attached to an IEN 2000, IEN 3000, IEN 4000 or
IEN 5000 chassis port that corresponds to the slot occupied by the CID61-Dual port
processor. Each female DB25 connector requires a Type V or VF cable which is then

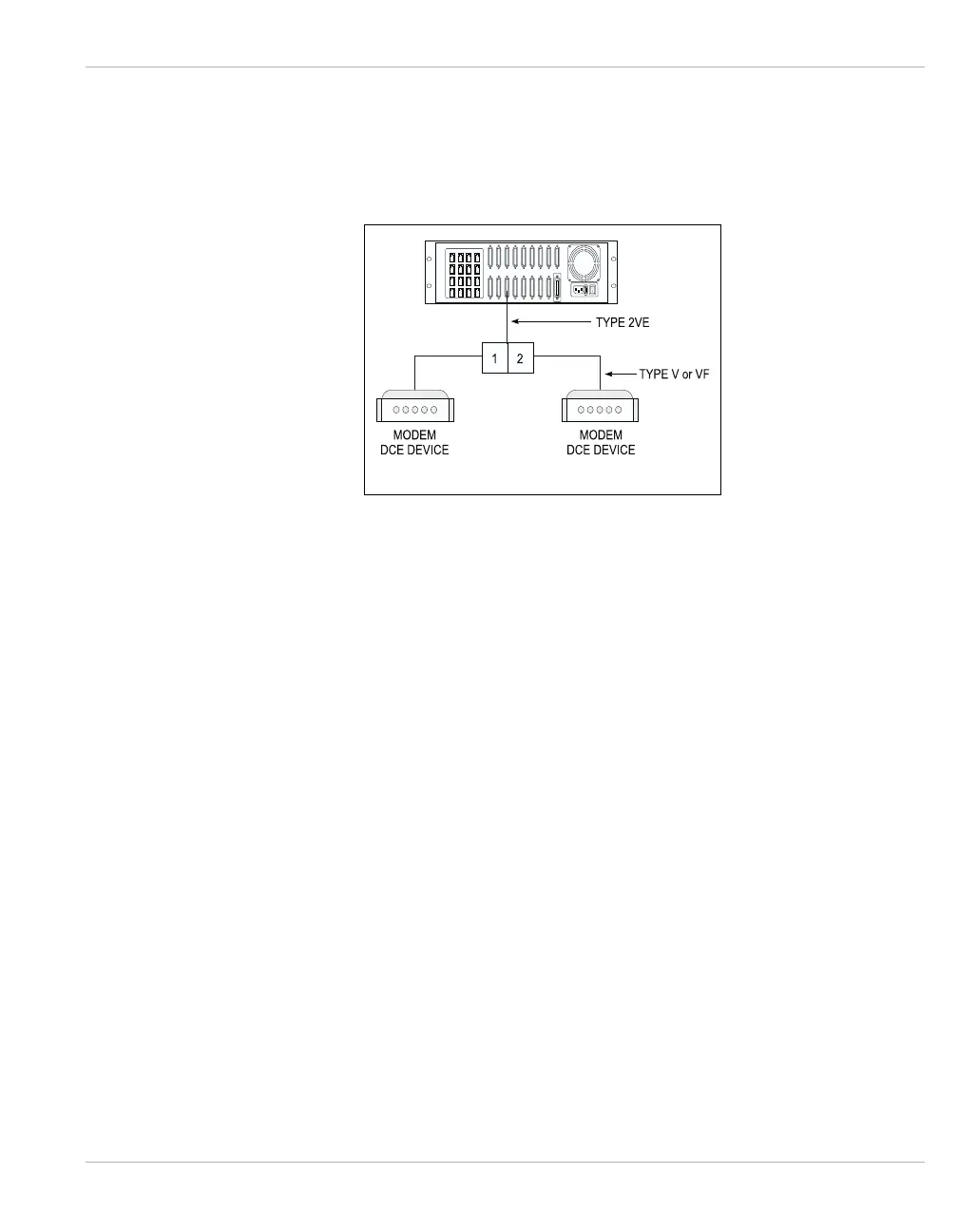

attached to the V.35 DCE device. Figure 4-65 illustrates the use of the Type 2VE cable.
Figure 4-65 Type 2VE Cable
