3.2 Overview pane
The welcome pane of the GUI changed from the well-known former Overview pane to the
new System pane, as shown in Figure 3-17. Clicking Overview in the upper-right corner of
the System pane opens a modified Overview pane with functionality that is similar to previous
versions of the software.

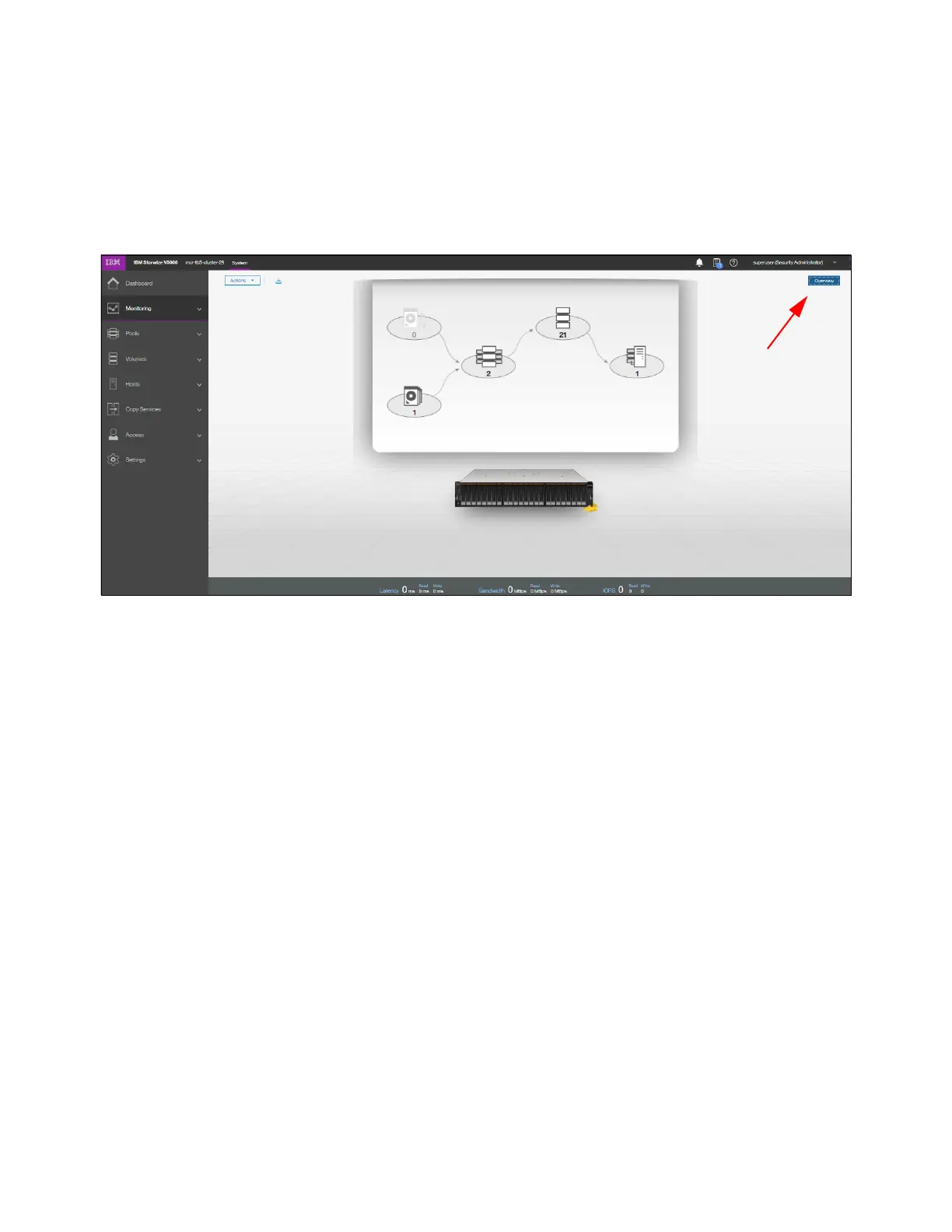

Figure 3-17 Opening the Overview pane
See 3.1.2, “System pane layout” on page 79 to understand the structure of the pane and how
to navigate to various system components and manage them more efficiently and quickly.
3.3 Monitoring menu
Place the cursor over the Monitoring function icon to open the Monitoring menu (Figure 3-18
on page 88). The Monitoring menu offers the following navigation directions:
System From the System panel, you can view details about control and
expansion enclosures and various hardware components of the
system. The system uses base-2 (binary numeral) as capacity
indicators for volumes, drives, and other system objects. The
management GUI and the command-line interface (CLI) use different
abbreviations to indicate capacity, but the value for these capacity
indicators is the same. See 3.3.1, “System overview” on page 88.
Events The Events panel displays two types of events: messages and alerts.
It also indicates the cause of any log entry. You can use this panel to
filter messages that are related to events that occurred on the system.
Some alerts have a four-digit error code and a fix procedure that helps
you fix the problem.
Other alerts also require action but do not have a fix procedure.
Messages are fixed when you acknowledge reading them and mark
them as fixed. Each event has a time stamp that indicates when the
action occurred or the command was submitted on the system.
