396 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

8.2.1 Adding host port

To add or delete host ports, go to the Port Definitions tab, as shown in “Port Definitions” on

page 394, then follow the steps listed here:

1. Click Add, as shown in Figure 8-30.

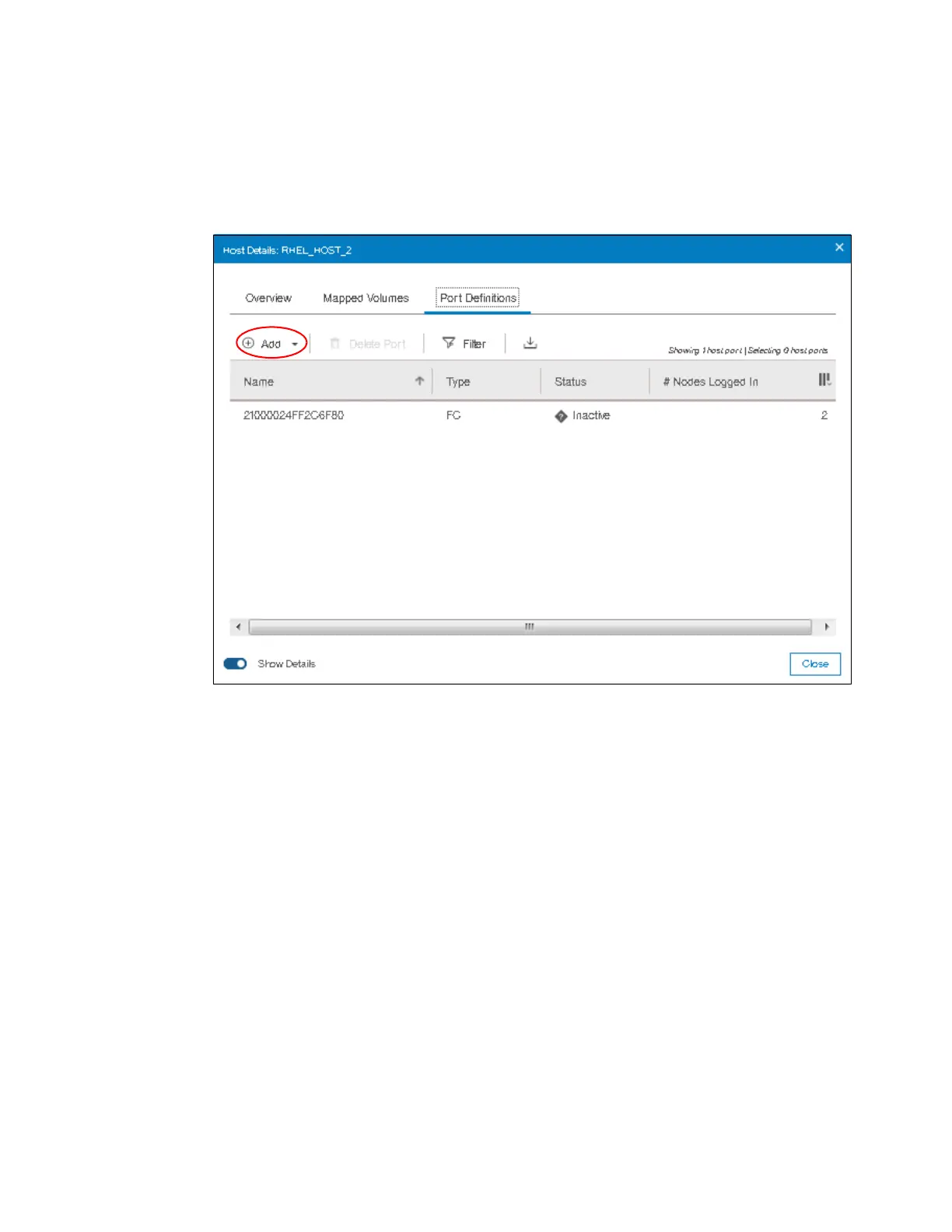

Figure 8-30 Add host port
