394 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
Mapped Volumes
Figure 8-28 shows the Mapped Volumes tab, which provides an overview of the volumes that
are mapped to the host. This tab provides the following information:
SCSI ID
Volume name
Unique identifier (UID)
Caching I/O group ID

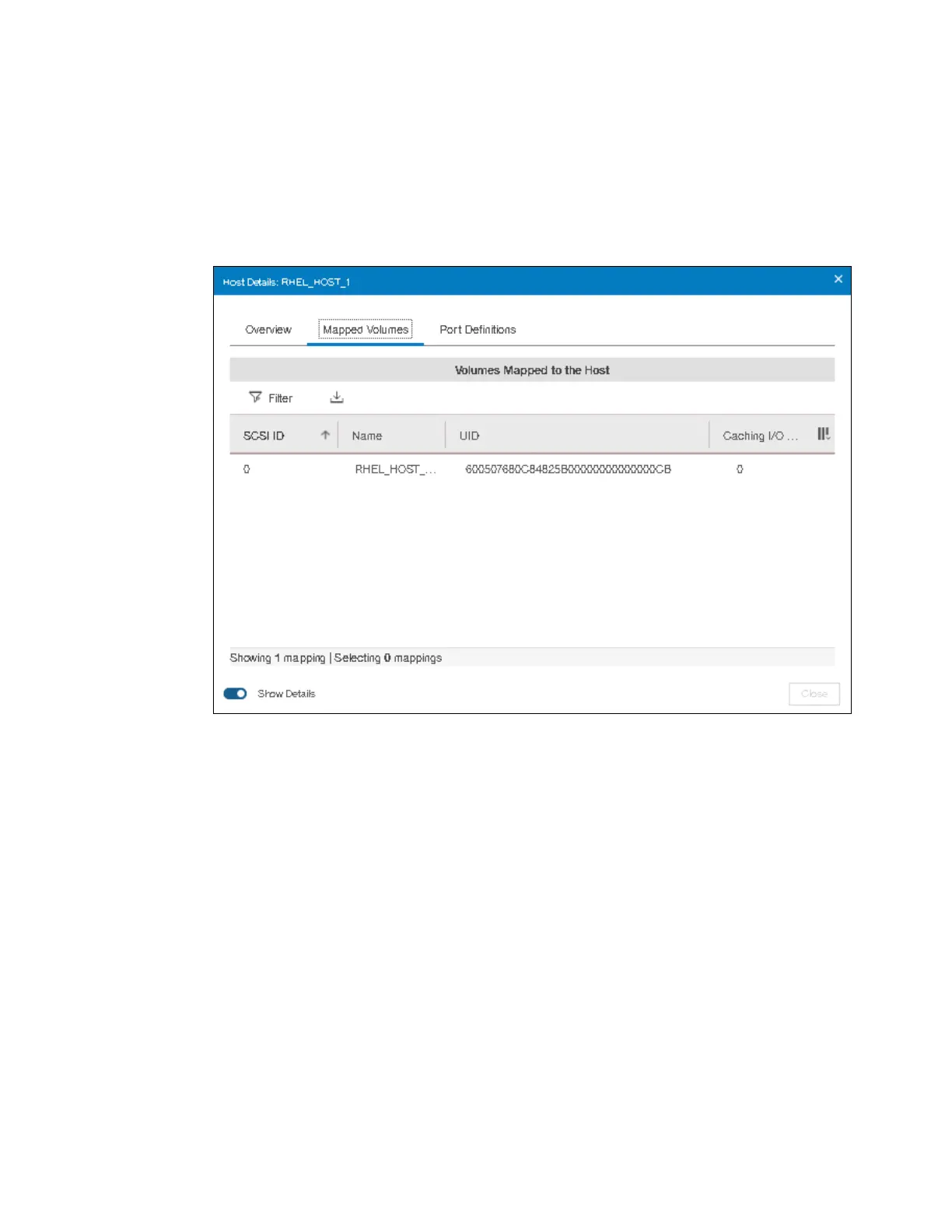

Figure 8-28 Host Details: Mapped Volumes tab
Port Definitions
Figure 8-29 on page 395 shows the Port Definitions tab, which shows the configured host
ports and their status. This tab provides the following information:
Name: The worldwide port names (WWPNs) (for SAS and FC hosts) or iSCSI Qualified
Name (IQN) for iSCSI hosts
Type: Port type
Status: Current port status
Number of nodes that are logged in: Lists the number of IBM Storwize V5000 node
canisters that each port (initiator port) is logged in to
