252 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

5.5.4 Configuring the IBM Storwize V5000 for iSCSI host connectivity

Complete the following steps to enable iSCSI connectivity:

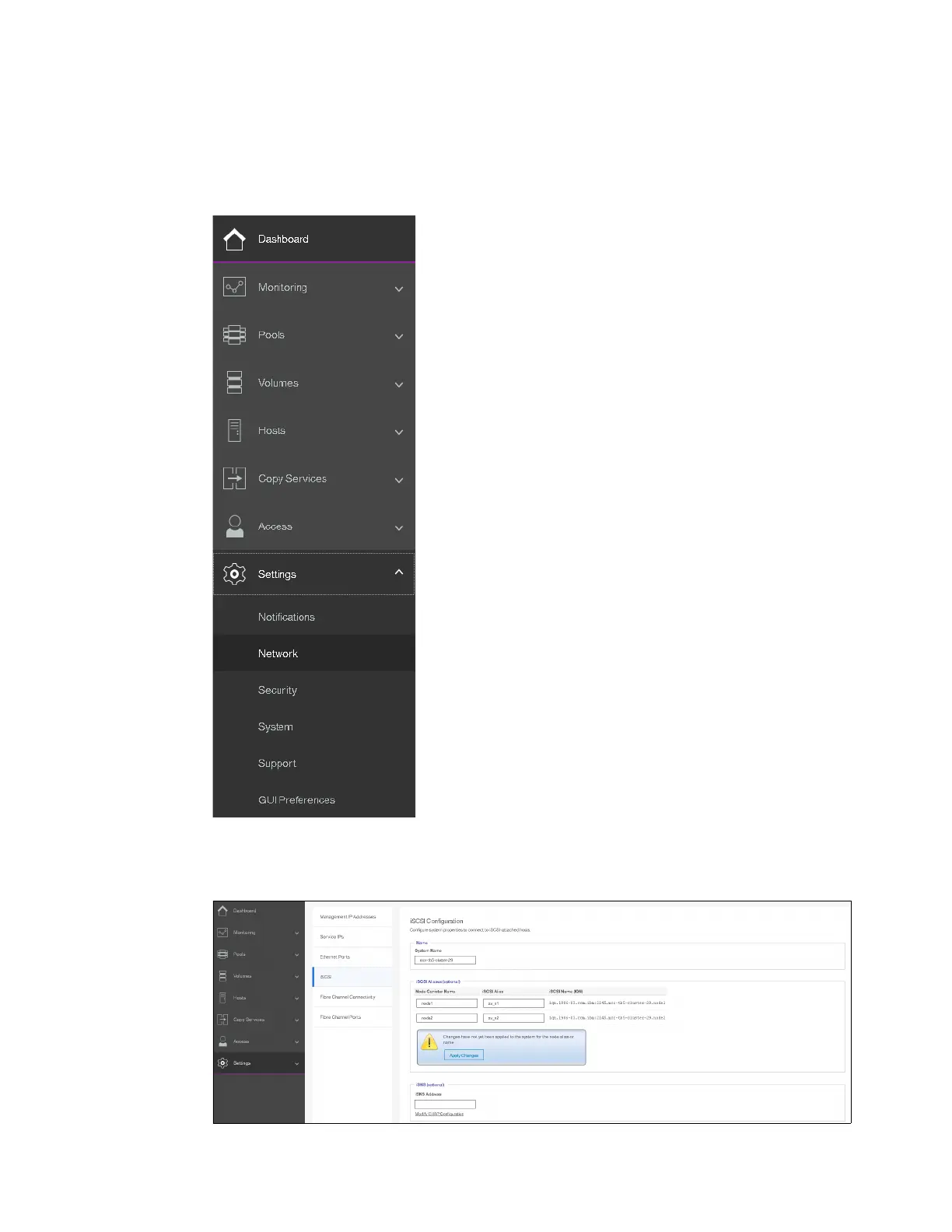

1. Switch to the configuration Overview window and select Network (Figure 5-59).

Figure 5-59 Configuration: Network

2. Select iSCSI and the iSCSI Configuration window opens (Figure 5-60).

Figure 5-60 iSCSI Configuration window
