44 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
Verify direct-attach interoperability with the IBM Storwize V5000 Gen2 and the supported
server operating systems by following the requirements that are provided at this website:
https://ibm.biz/BdrDsy
2.4 SAS direct-attach planning
The Storwize V5000 Gen2 allows SAS host attachment by using an optional SAS card that
must be installed in both node canisters. In addition, the Storwize V5020 has two onboard
SAS ports for host attachment. The SAS expansion ports cannot be used for host

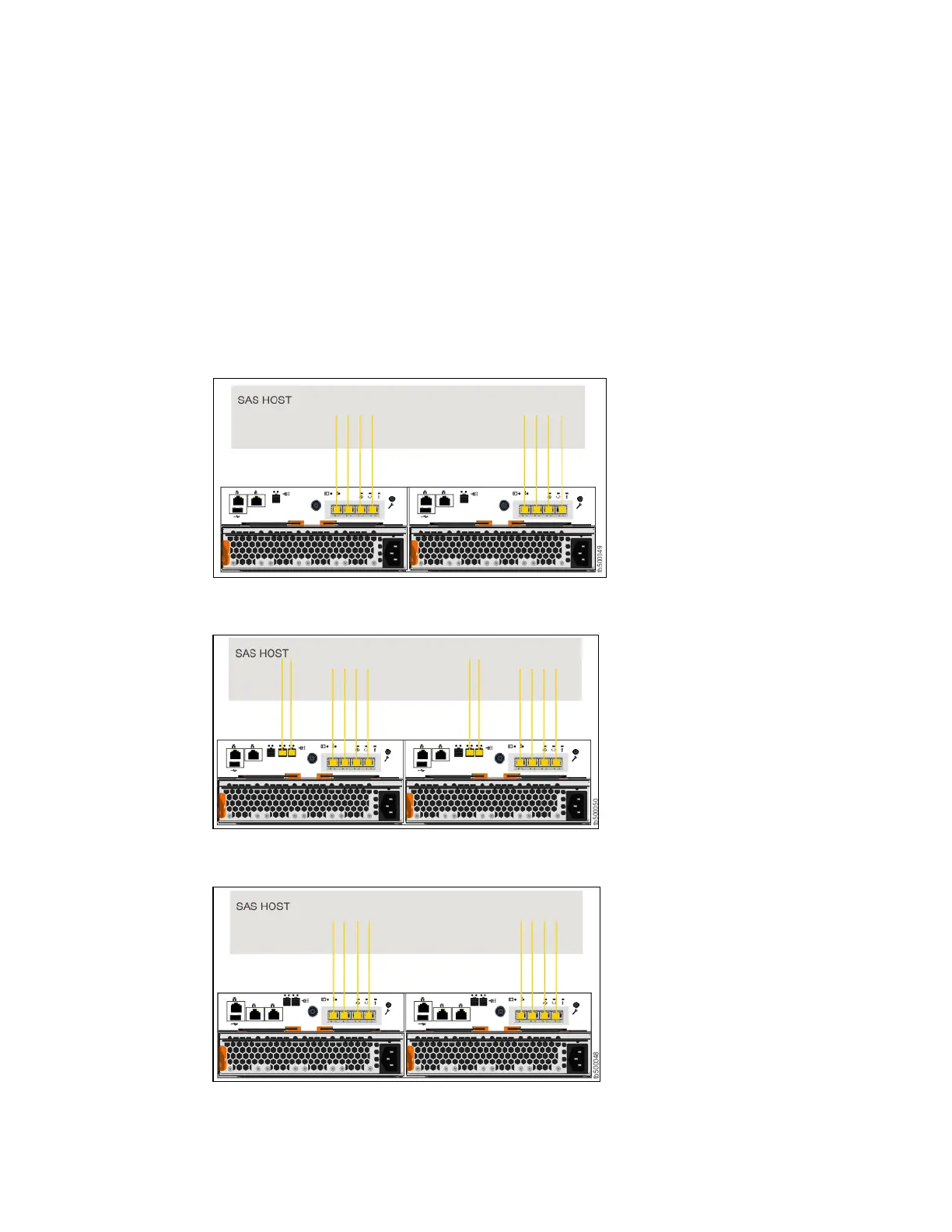

attachment. Figure 2-7, Figure 2-8, and Figure 2-9 show the SAS ports that can be used for
host attachment in yellow for each Storwize V5000 Gen2 model.
Figure 2-7 Storwize V5010 SAS host attachment
Figure 2-8 Storwize V5020 SAS host attachment
Figure 2-9 Storwize V5030 SAS host attachment
