Chapter 5. Host configuration 271
5.6.5 Remove volume mapping from a host cluster
To remove a volume mapping from a host cluster, follow the steps as listed.

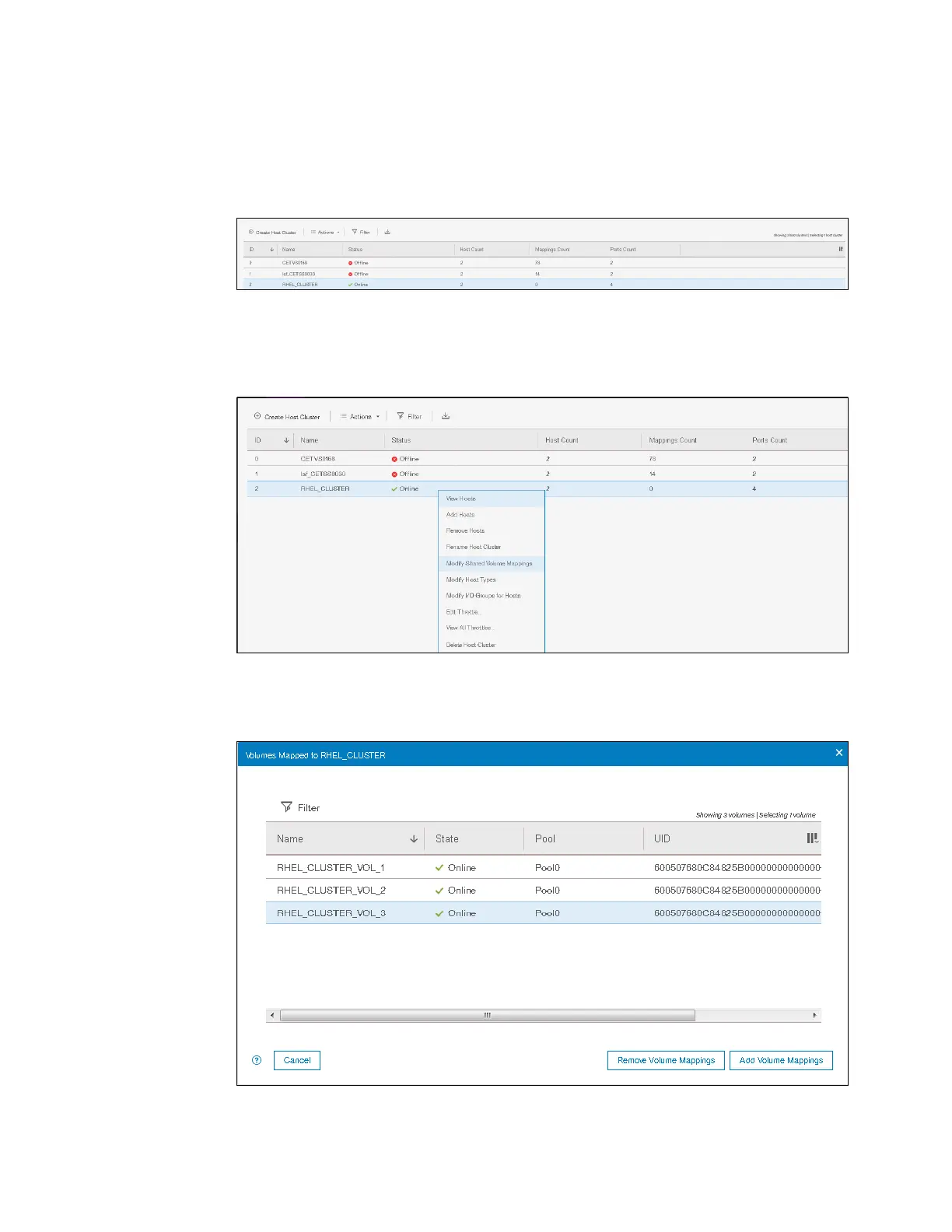

1. From the Host Clusters pane, select the desired host cluster as shown in Figure 5-94.
Figure 5-94 Host Clusters
2. Right-click the desired host cluster and select Modify Shared Volume Mappings as shown
in Figure 5-95.
Figure 5-95 Modify Shared Volume Mapping for Host Cluster
3. A window showing a list of volumes mapped to the host cluster is shown in Figure 5-96.
Figure 5-96 List of volumes mapped to a host cluster
