272 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

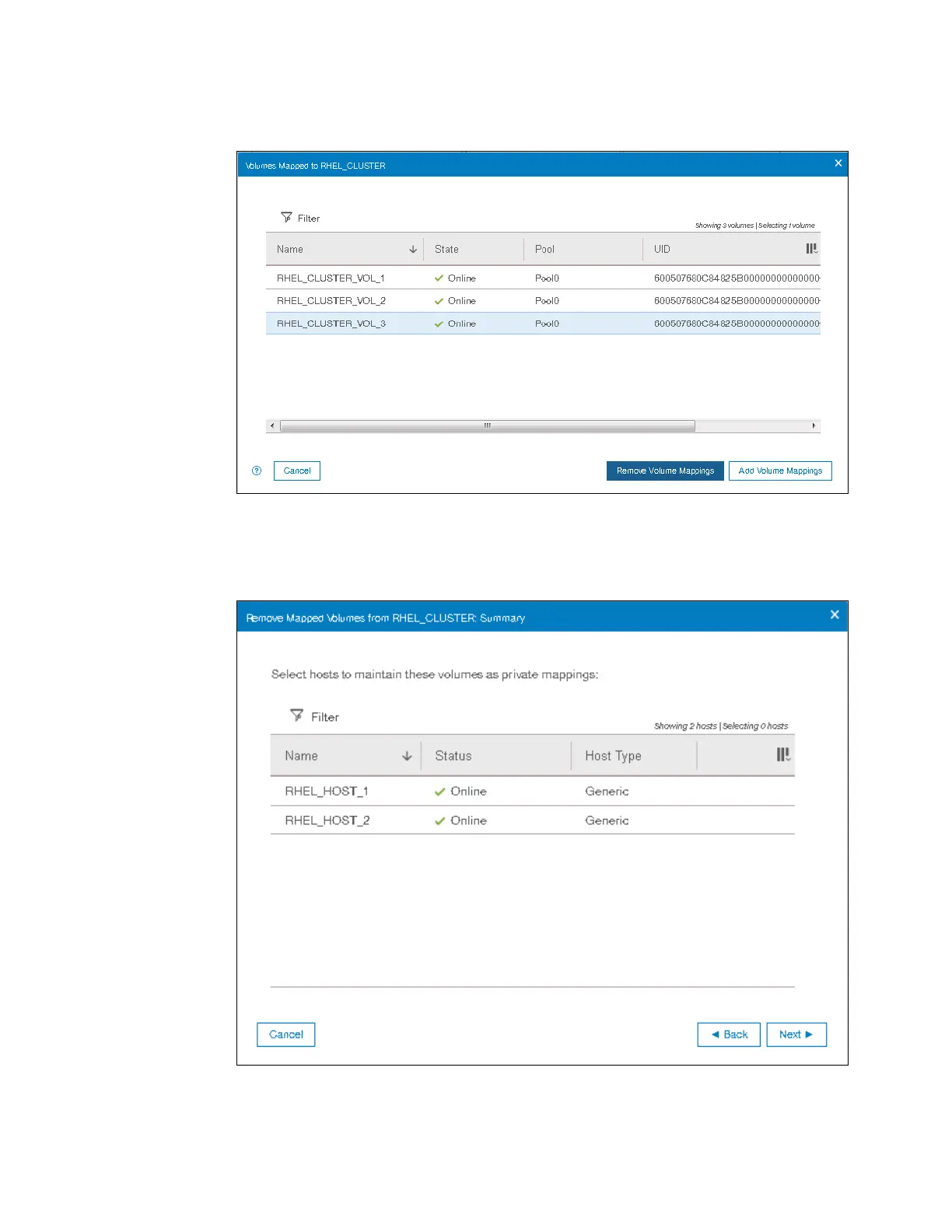

4. Select the desired volume to be unmapped, as shown in Figure 5-97.

Figure 5-97 Selecting the volume to be unmapped

5. Click Remove Volume Mappings. A summary window listing the hosts is displayed, as

shown in Figure 5-98.

Figure 5-98 Host cluster member list
