1.5 IBM Storwize V5000 Gen2 hardware
The IBM Storwize V5000 Gen2 solution is a modular storage system that is built on a
common enclosure platform that is shared by the control enclosures and expansion
enclosures.

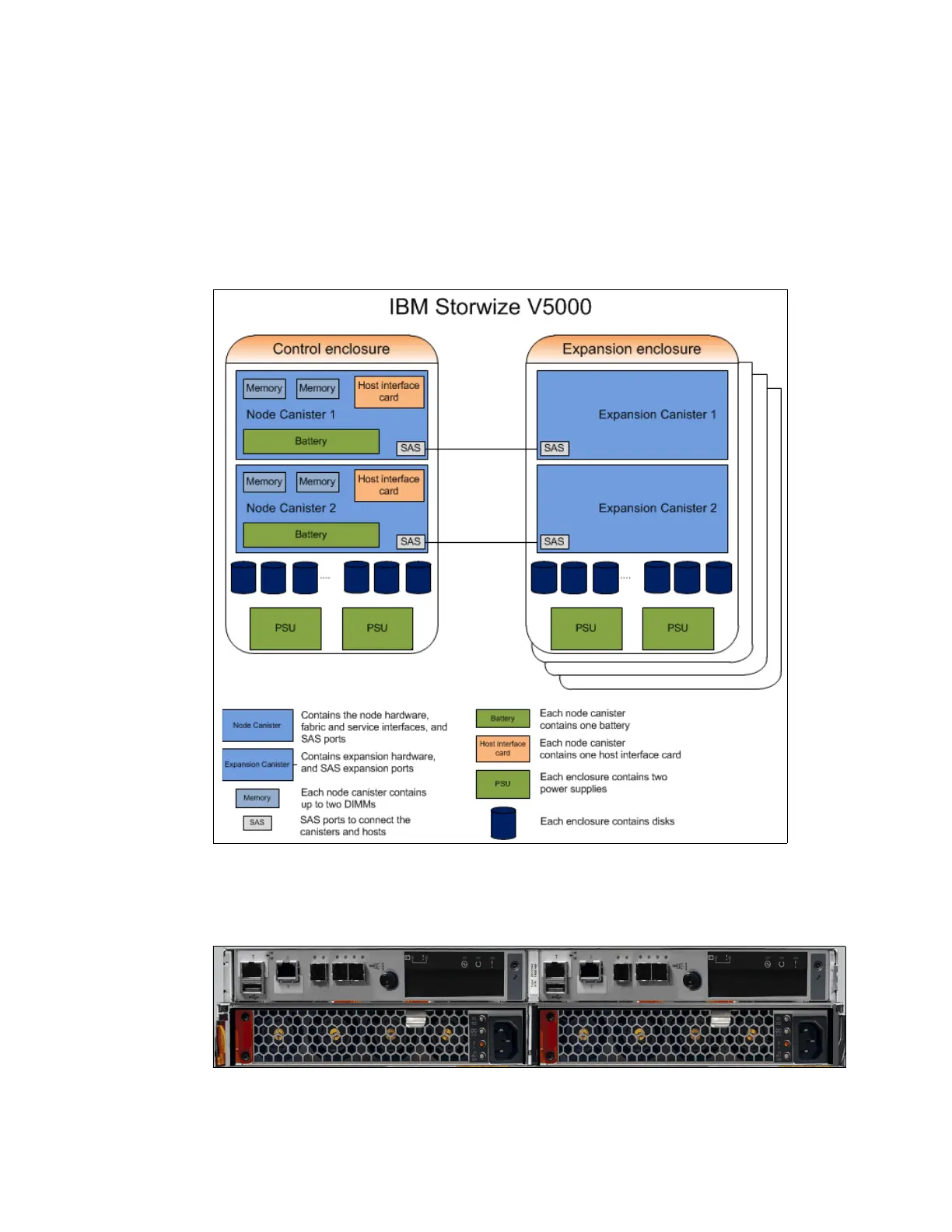

Figure 1-3 shows an overview of hardware components of the IBM Storwize V5000 Gen2
solution.
Figure 1-3 IBM Storwize V5000 Gen2 hardware components
Figure 1-4 shows the control enclosure rear view of an IBM Storwize V5000 Gen2 enclosure
(the Storwize V5020).
Figure 1-4 Storwize V5020 control enclosure rear view
