Chapter 8. Advanced host and volume administration 397

2. Select the type of port that you want to add. In this example, we chose Fibre Channel port,

as shown in Figure 8-31.

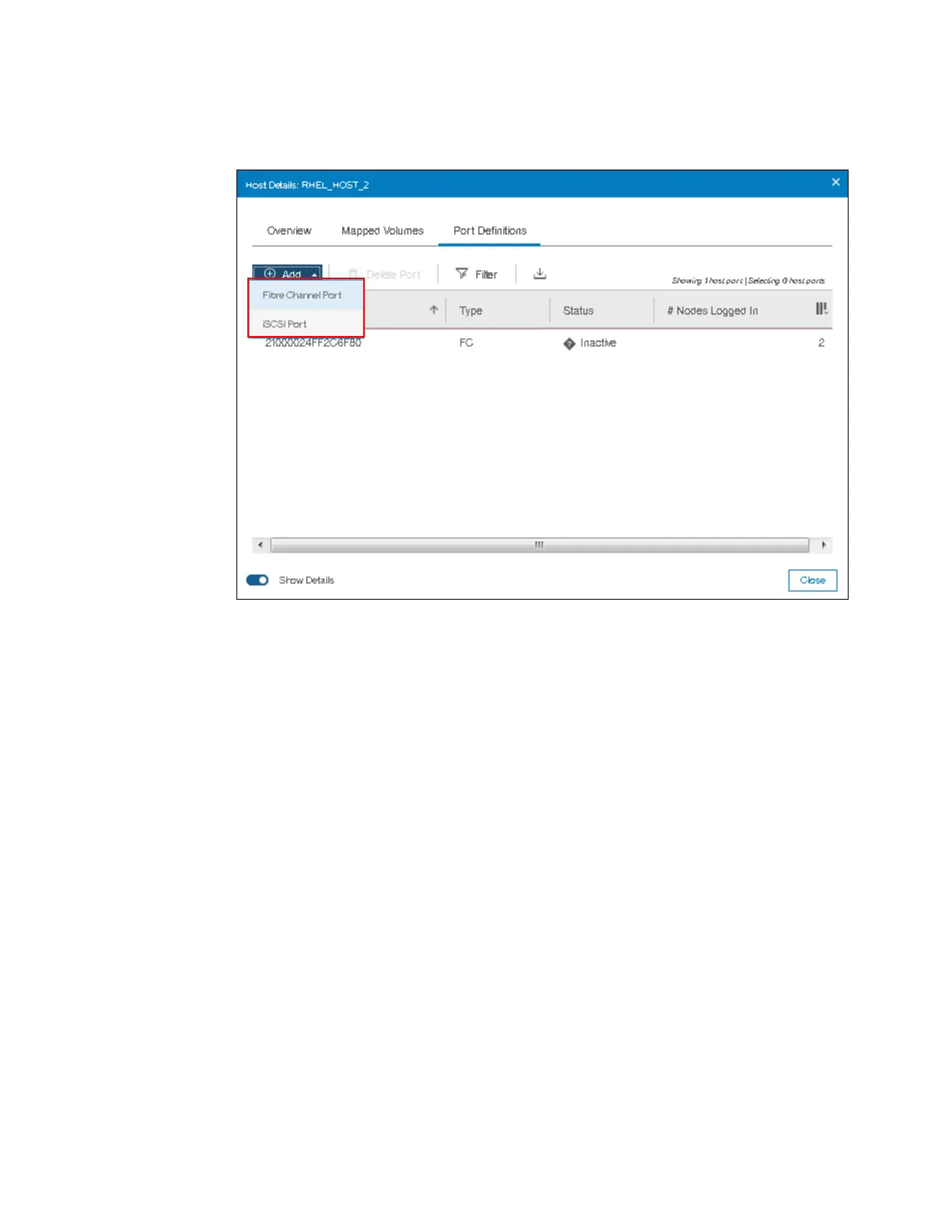

Figure 8-31 Type of port to be added
