212 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1
2. To configure an IP address, click one of the iSCSI Ethernet connections (in this case,

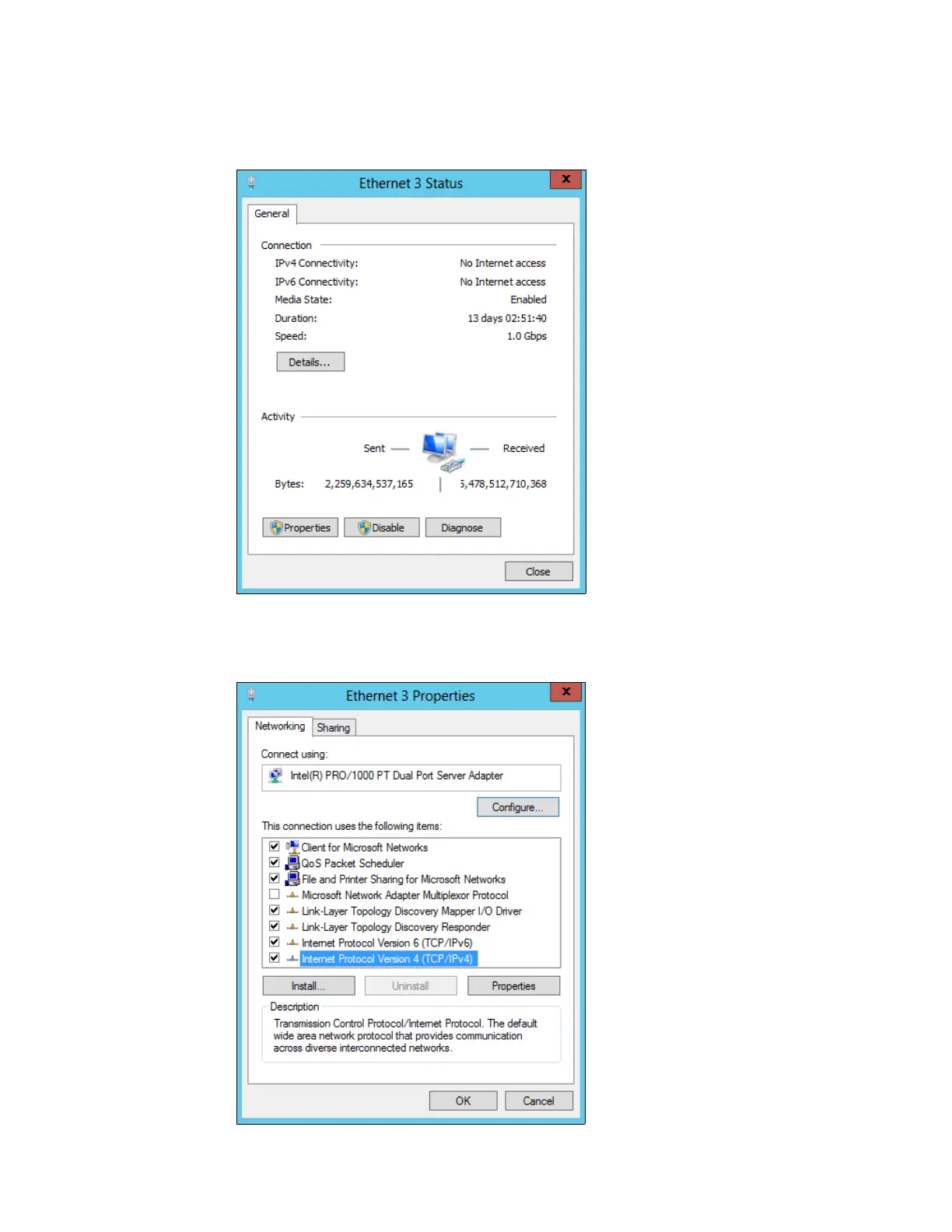

Ethernet 3 or Ethernet 4). Figure 5-14 shows the window that displays the Ethernet status.
Figure 5-14 Ethernet status
3. To configure the IP address, click Properties (Figure 5-15).
Figure 5-15 Ethernet properties
