Chapter 5. Host configuration 241

5. Add all ports that belong to the host (Figure 5-44).

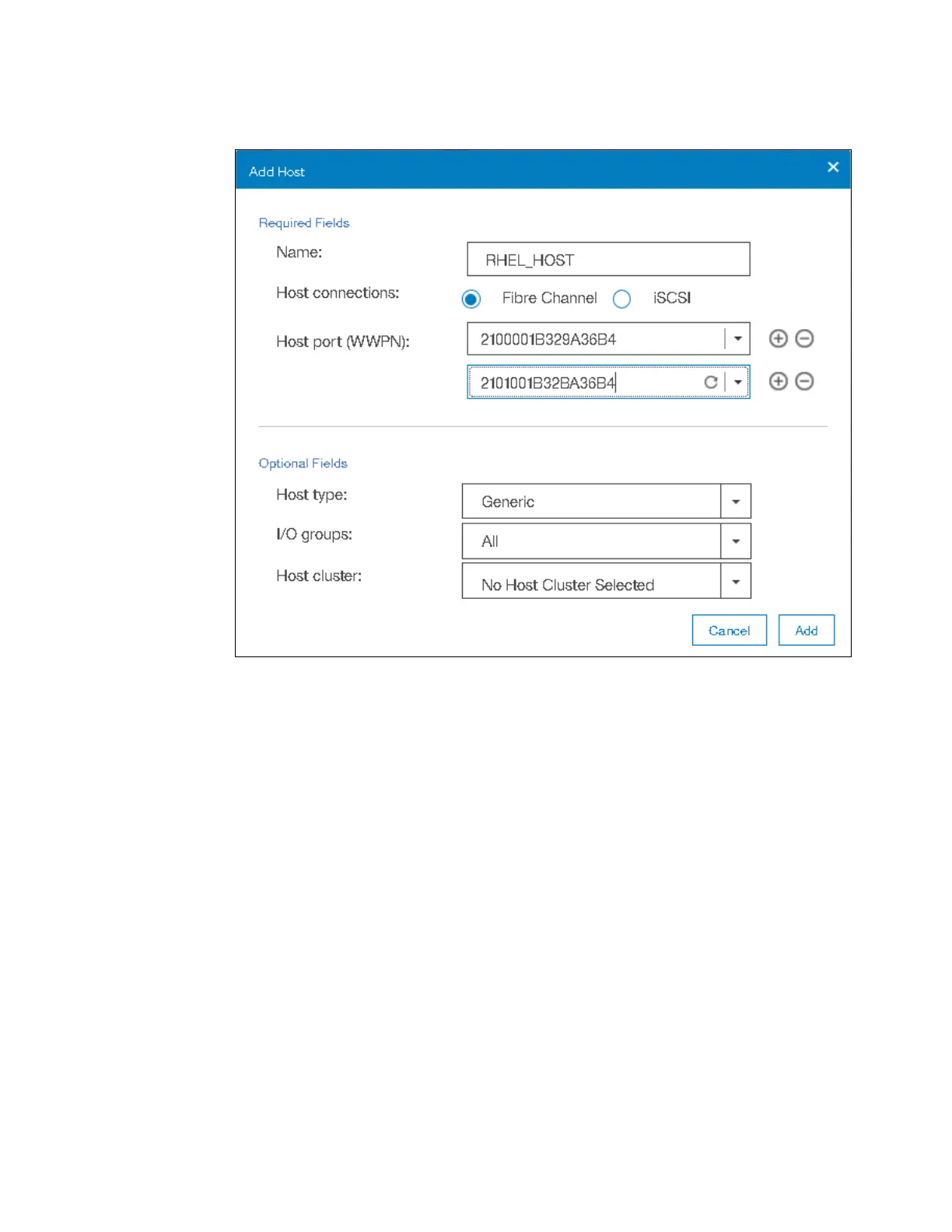

Figure 5-44 Add all WWPNs
