Chapter 5. Host configuration 245

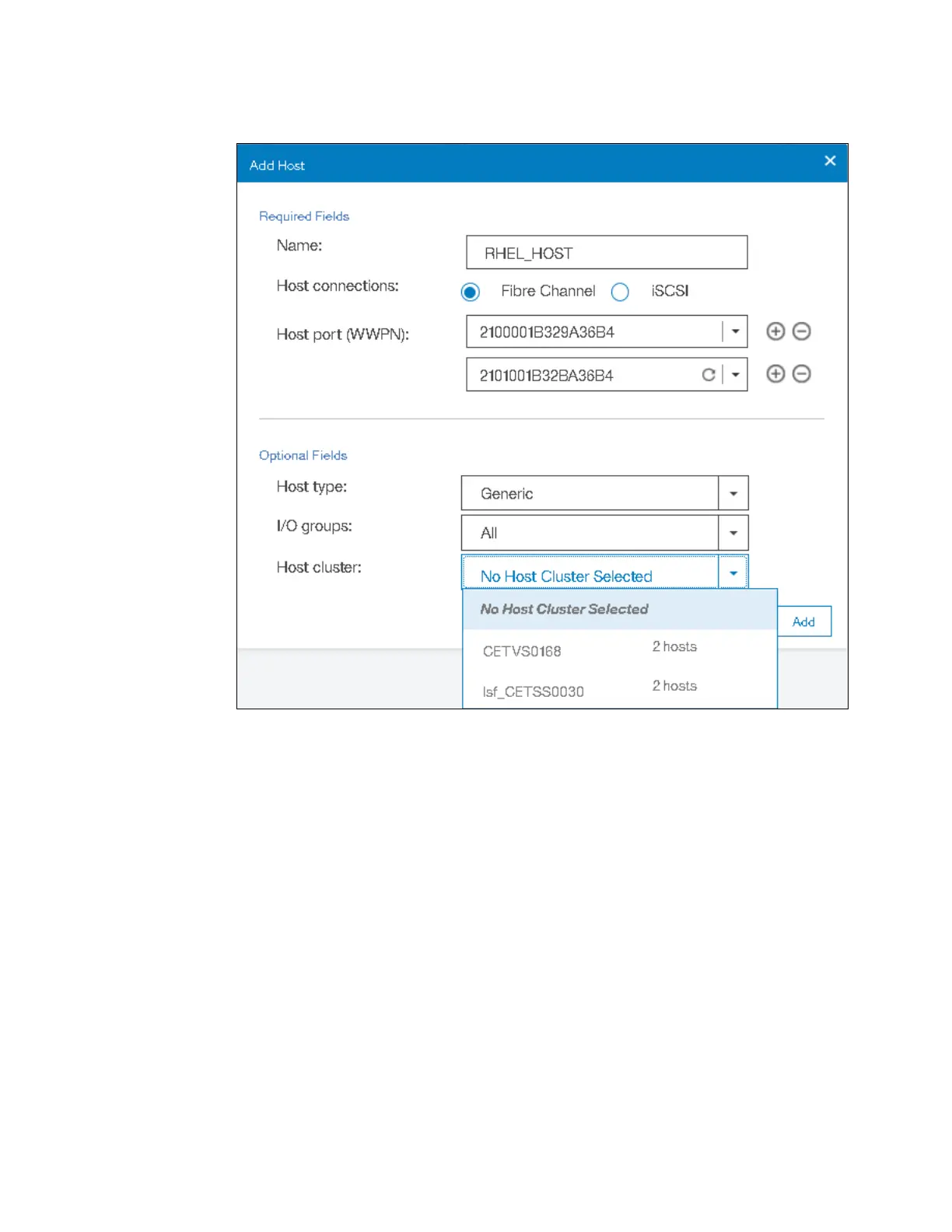

8. Select the desired host cluster if any as shown in Figure 5-48.

Figure 5-48 Selecting Host cluster
