380 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

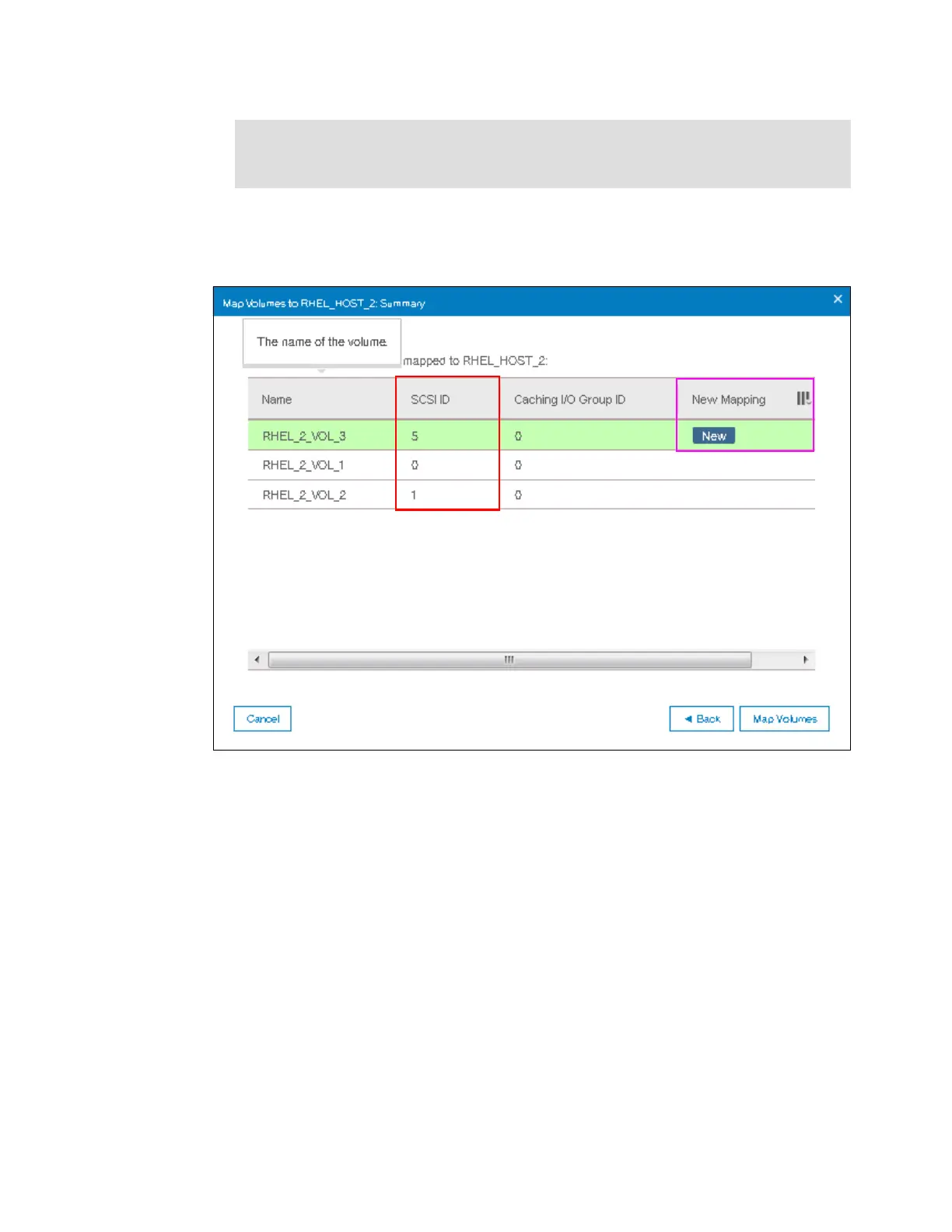

5. Click Next. A window will open indicating new mapping to the host, along with already

mapped volumes to that host, as shown in Figure 8-8. SCSI ID’s for each of the mappings

is also shown as part of this process.

Figure 8-8 Volume map

Important: The IBM Storwize V5000 automatically assigns the lowest available SCSI

ID if none is specified. However, you can set a SCSI ID for the volume. The SCSI ID

cannot be changed while the volume is assigned to the host.
