608 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

7. Select one of the following types of relationships to create, as shown in Figure 10-116:

– Metro Mirror

– Global Mirror

– Global Mirror with Change Volumes

8. Click Next.

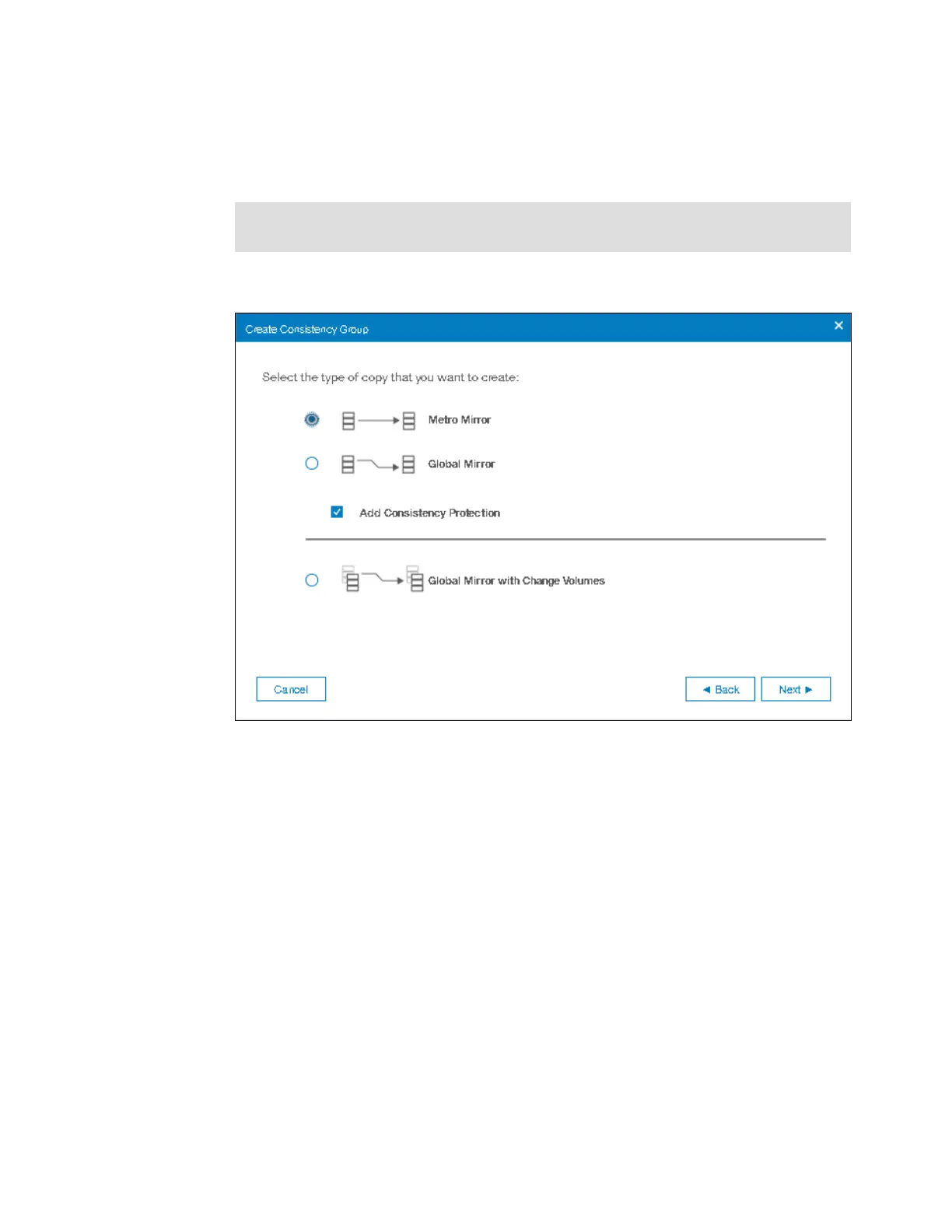

Figure 10-116 Select the type of relationship that you want to create

Note: For Metro Mirror or regular Global Mirror, also indicate whether to add

consistency protection.
