Chapter 13. Encryption 775

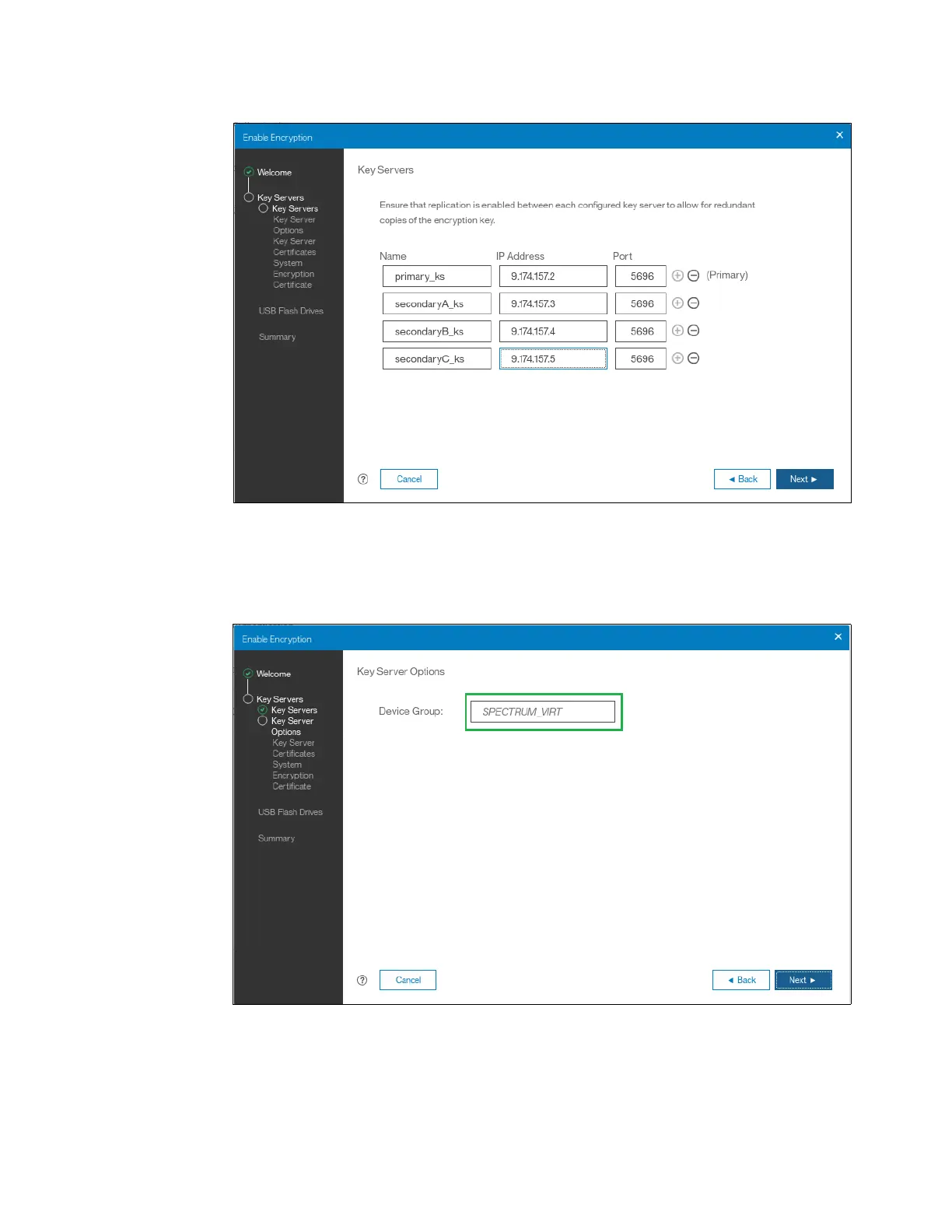

Figure 13-42 Configuring multiple SKLM servers

5. The next page in the wizard is a reminder that SPECTRUM_VIRT device group dedicated for

IBM Spectrum Virtualize systems must exist on the SKLM key servers. Make sure that this

device group exists and click Next to continue, as shown in Figure 13-43.

Figure 13-43 Checking key server device group
