Chapter 4. Storage pools 149

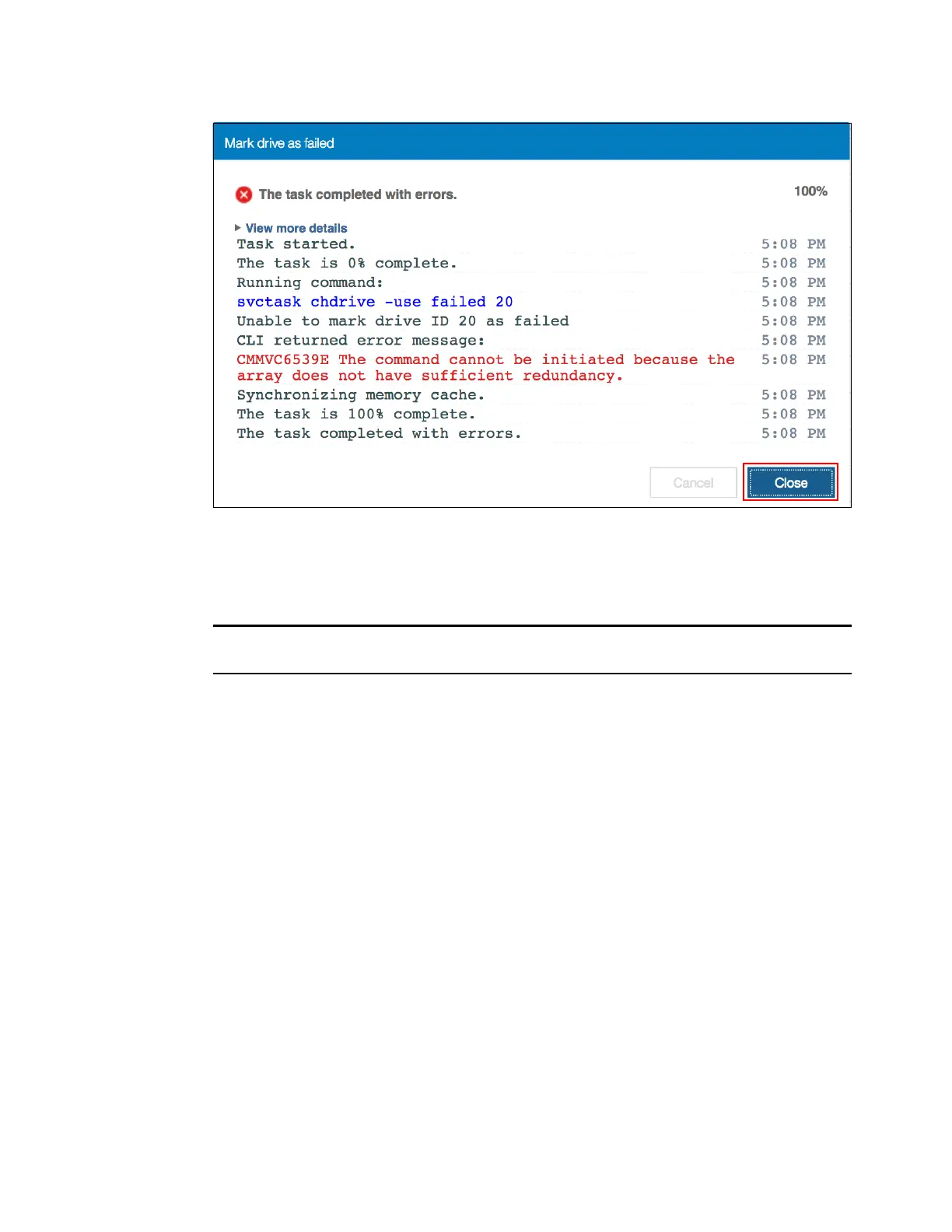

Figure 4-9 Internal drive offline not allowed because of insufficient redundancy

Example 4-1 shows how to use the chdrive command-line interface (CLI) command to set

the drive to failed.

Example 4-1 The use of the chdrive command to set the drive to failed

chdrive -use failed driveID

chdrive -use failed -allowdegraded driveID
