154 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

If the Show Details option is not selected, the technical information section is reduced, as

shown in Figure 4-15.

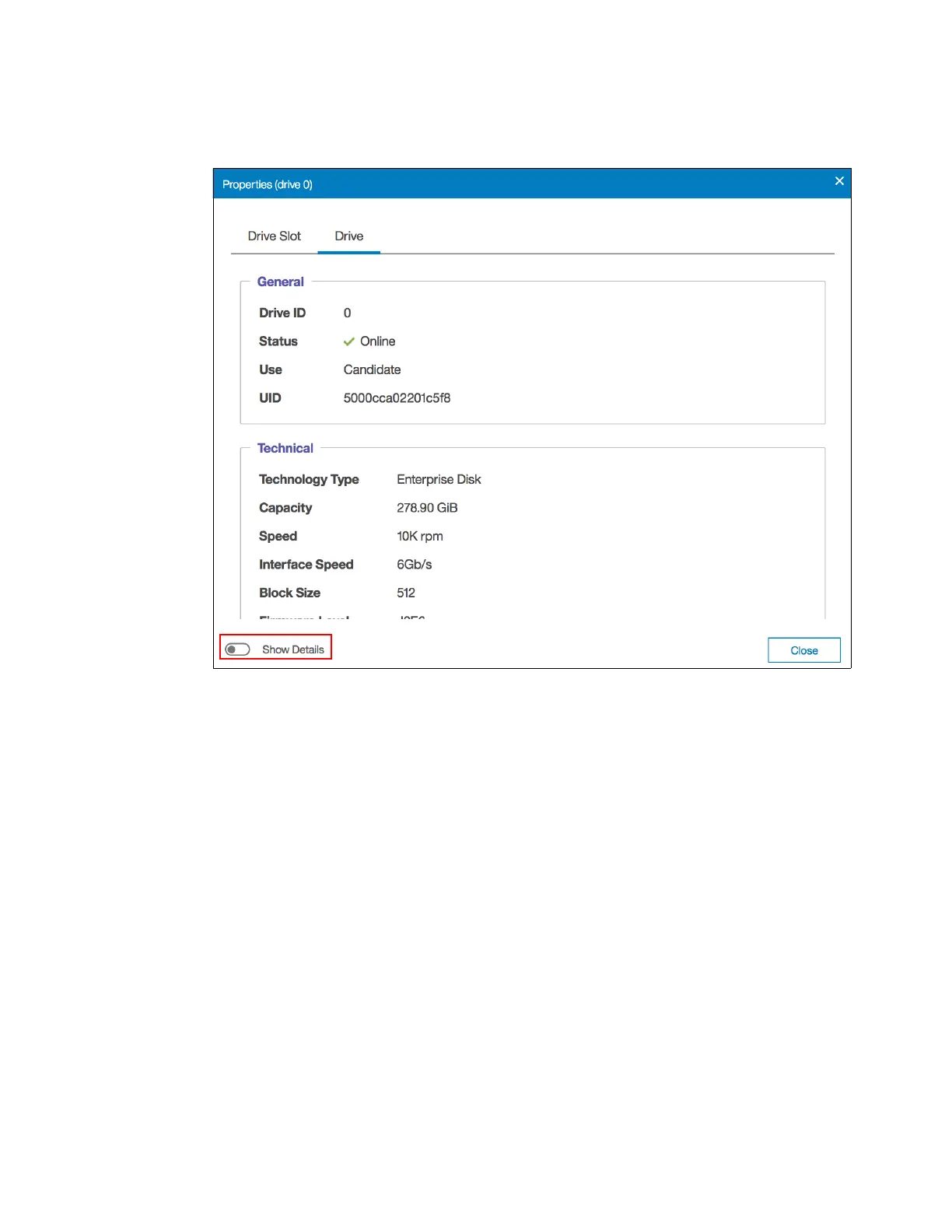

Figure 4-15 Internal drive properties without details

A tab for the Drive Slot is available in the Properties panel (as shown in Figure 4-16 on

page 155) to obtain specific information about the slot of the selected drive. The Show

Details option is also applicable to this tab. If you do not select it, the Fault LED information

disappears from the panel. Click Close to return to the Internal Storage panel.
