174 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

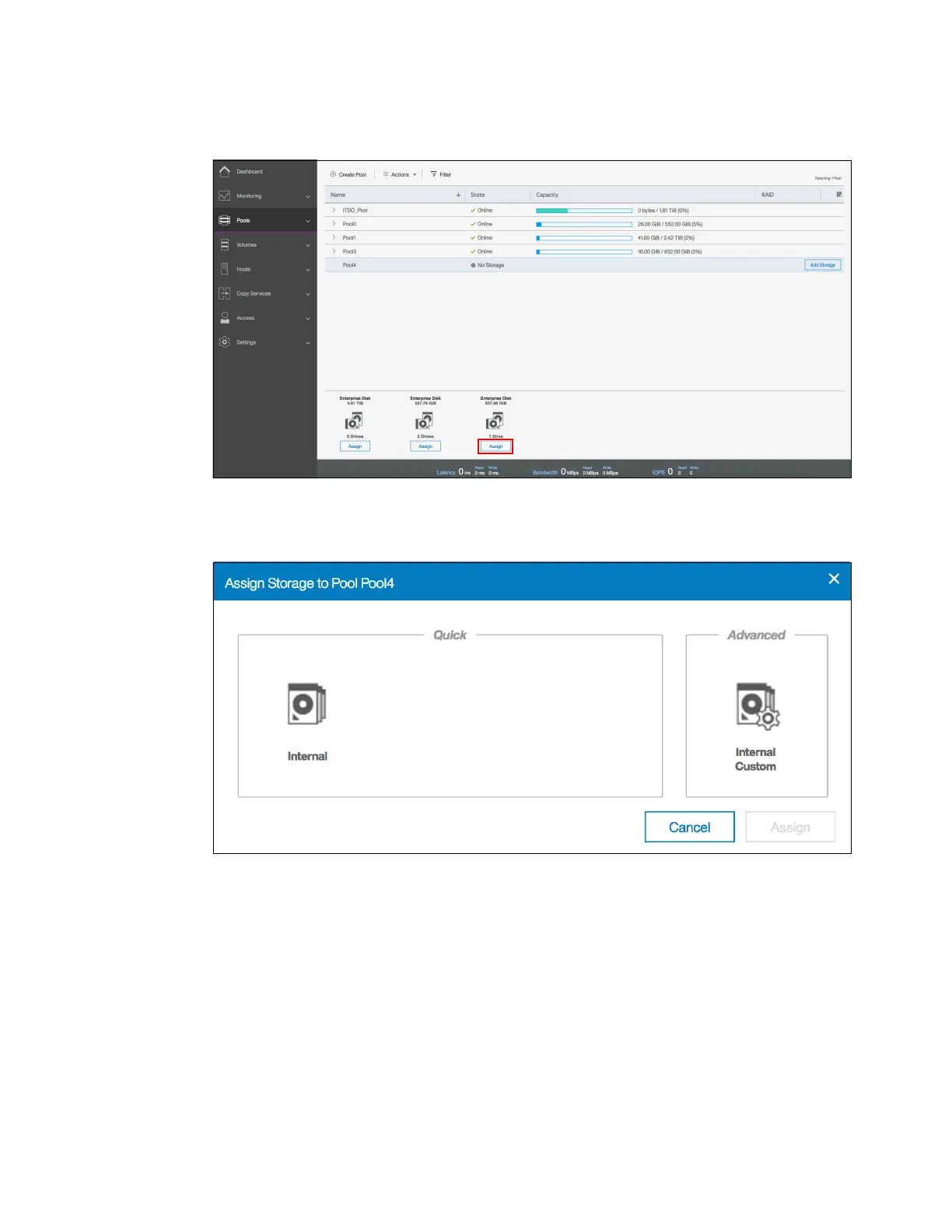

򐂰 Option 3: Select Assign under a specific drive class or external storage controller, as

shown in Figure 4-43.

Figure 4-43 Add storage: option 3

Both options 1 and 2 start the configuration wizard shown in Figure 4-44.

Figure 4-44 Assigning storage to storage pool
