178 Implementing the IBM Storwize V5000 Gen2 with IBM Spectrum Virtualize V8.1

When you are satisfied with the presented configuration click Assign as shown in

Figure 4-48. The array MDisks are then created and initialized on the background.

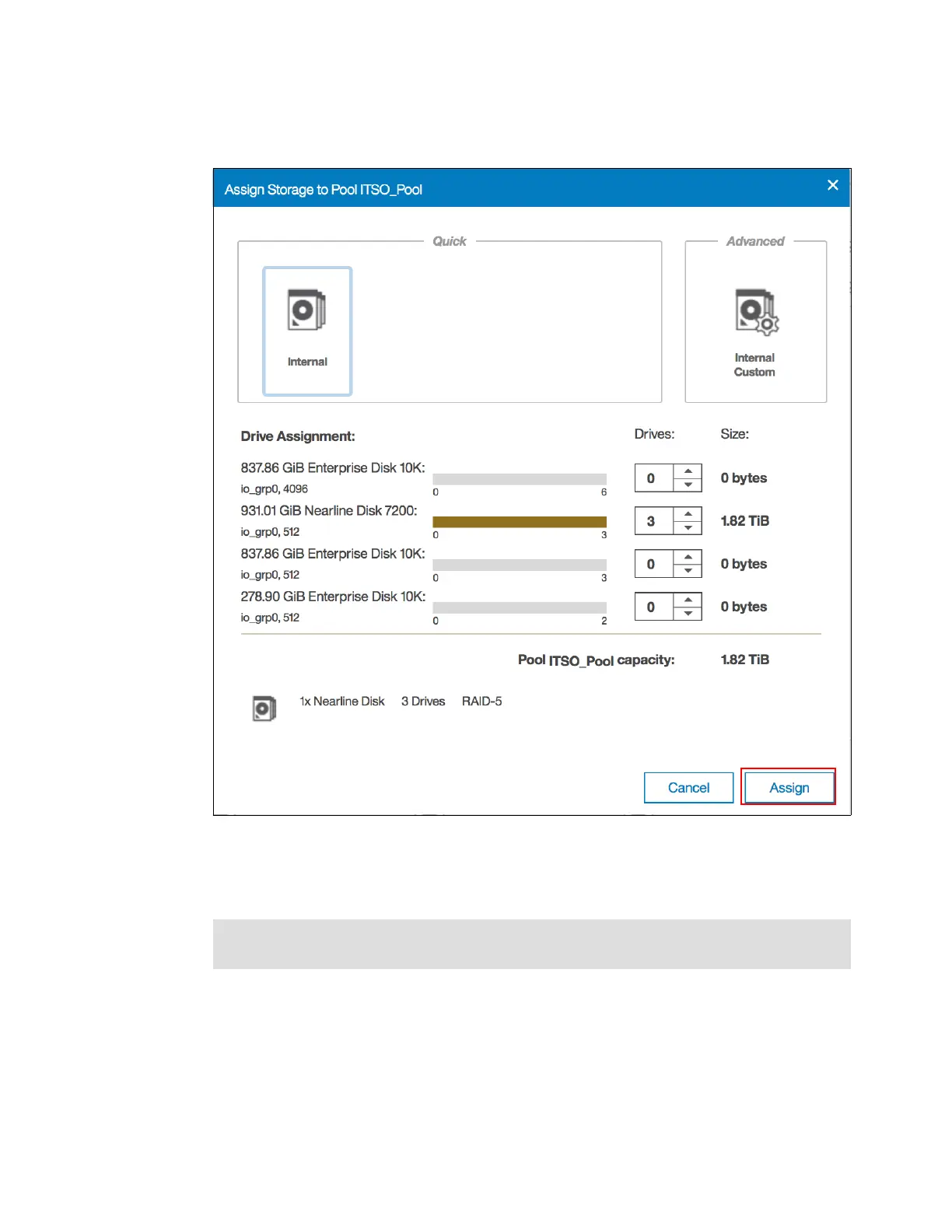

Figure 4-48 Clicking assign on quick configuration wizard

Advanced internal custom configuration

Selecting Internal Custom allows the user to customize the configuration for internal drives.

The following values can be customized:

򐂰 RAID level

򐂰 Number of spares

򐂰 Array width

򐂰 Stripe width

򐂰 Number of drives of each class

Tip: It is advised to use the advanced configuration only when the quick configuration

suggested does not fit your business requirements.
